Long story short, the service manual hasn't helped me and neither has searching the forums. Does anyone have a diagram of the engine vac lines? In particular I need to see where the PCV vave connects on the other end, but there's one other line I can't find a hoe for. Oddly enough my car runs fine without them connected. Don't ask me how.

I won't be able to respond until tomorrow (Thurs) in the late morning/early afternoon, but any help would be appreciated.



To be honest w/ u everybody goes to u w/ questions so I think u will have a hard time finding answers here unless u know them haha good luck though



Damn. It's been a long time since I've been this disappointed. I still need an answer. Someone please just trace the PCV valve vac line and tell me what it attaches to? Any idiot could answer except the idiot sitting behind my computer.



pcv on 02-03 connects directly into the intake manifold right straight back from where it comes out. It's a real short hose making a slight bend around the coil packs driver's side.



Thanks.



The power of togetherness.



Good job guy.



andrew what is the other line you need?



I'll take a pic when I get a chance. It's an oddly shaped line. Anyone else find it strange that my car still runs and makes boost without them attached?



You got all you needed?

I dont know the similarities but I could probably get a pic of a 4G93 for ya.



The IM is different, so I doubt it's the same. I'll have to remember to take a pic tomorrow. Sucks though cuz I'm sick.

Sweet answered one of my questions, but I'll have to provide better info for the second line.



a vague description might help. if you'd like, i'll take some pic's later and see if it helps. which side of the IM are we talking about?



I'm just gonna go take a pic.

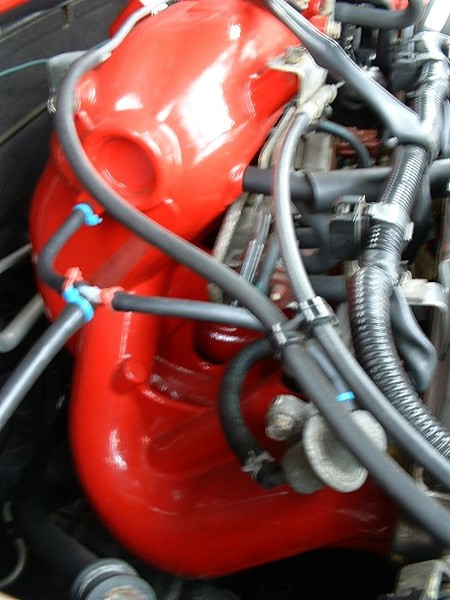

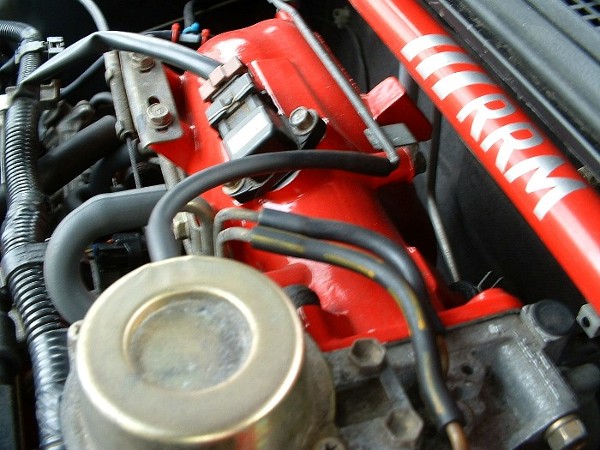

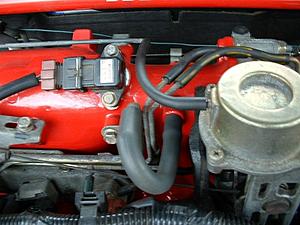

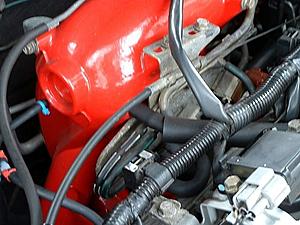

beat me too it. here are some pic's i took an hour ago. i hope they help.

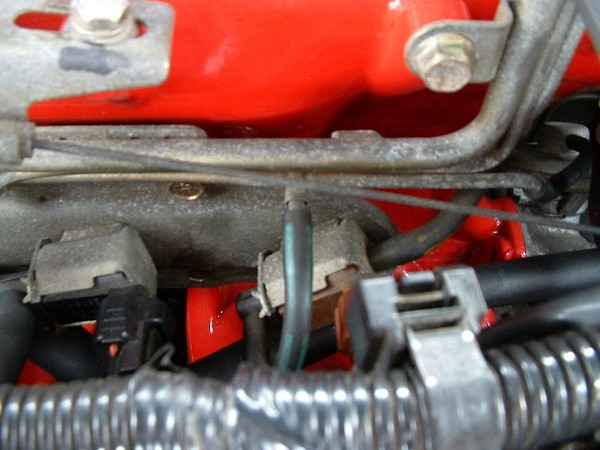

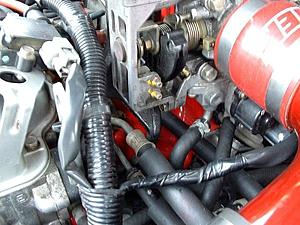

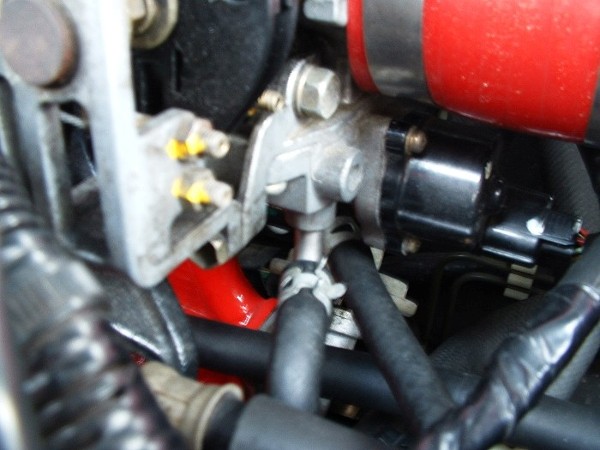

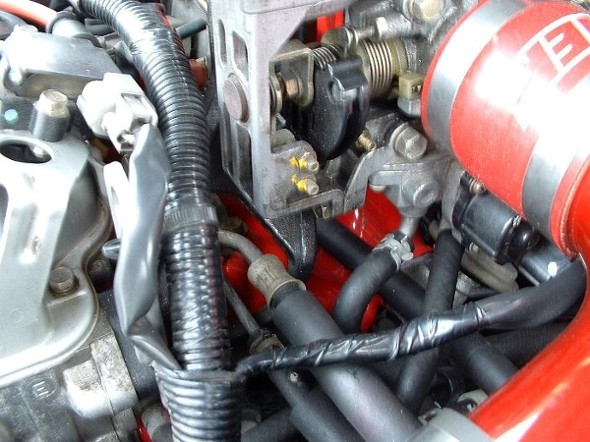

and here are two more.
