Are the wire colors I listed above correct or different?



correct



oh u only mention 2 wire but there 3 wire on the connector of the speed sensor..i figure it a ground cuz it solid black unless if for sumthing else



Ok. Here's what the FSM shows. On the auto trans output speed sensor that black wire goes to the PCM. However, on a manual trans that wire is grounded and does not go to the ECU. If you ground this wire you should be up and running. Give that a try.



alrdy did ground it... dat wat it thought it was

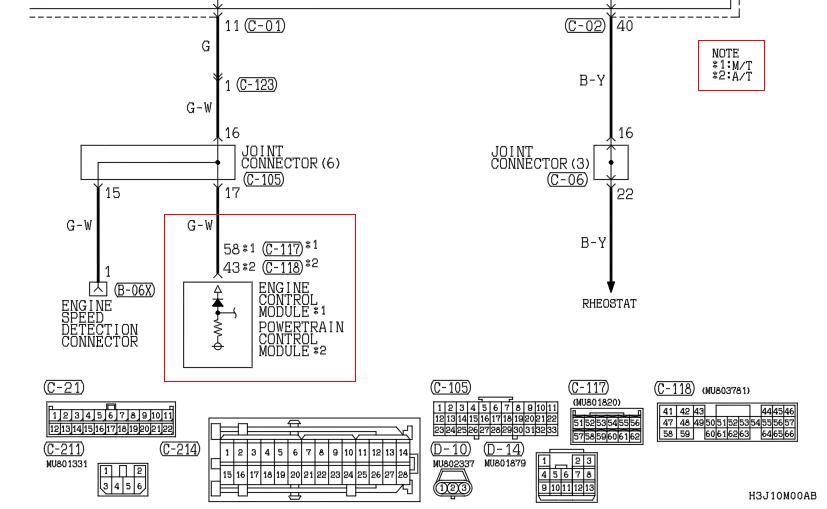

Ok. Digging through the circuit diagrams I came across what looks to be a difference in wiring on the harness for an auto vs. manual. If you look in the red box you will see that the input wire is on different harnesses. Did you swap the PCM out for an ECU?



nope im still using the auto ecu



Ok. It now makes sense. Your PCM is currently sending its vehicle speed signal to the cluster as it should. However, its not receiving a speed signal to send because the output speed sensor no longer exists. So the vehicle speed sensor is sending a signal to the PCM which does not know how to interpret it. You need to switch to an ECU and then switch the pin on the harness for the vehicle speed sensor signal to be interpreted and passed on to the cluster. Swapping the PCM out for an ECU is necessity when performing a 5-speed trans swap.



hahahha guess i go on without a speedometer but everything else is fine from the swap...been a year without it
