Made some offset +caster/ camber plates for Ohlin DFVs
#20
EvoM Guru
iTrader: (1)
I have 5.3* of caster with just the PSRS. Would like to get some adjustable upper plates to bring the tire back a smidge. And more caster never hurts. I run around 12* on my offroad car.
#23
Evolving Member
iTrader: (17)
Just wanted to post up a thanks to Dallas for sharing the design. I had a set cut locally ($60) then anodized (hook-up). My trimming of the upper bearing support turned out a little different and in the future I'll probable add the fourth fastener back in.
Alignment results for the following set-up:
Struts bolts are in the -1deg position, offset Duroball control arm bushings and Whiteline roll-center kit. Ride heights are ~25.75"F & ~25.5"R (GND to fender).
Drivers side -3deg camber, 5.6 caster. Pass side -3deg camber, 5.2deg caster.

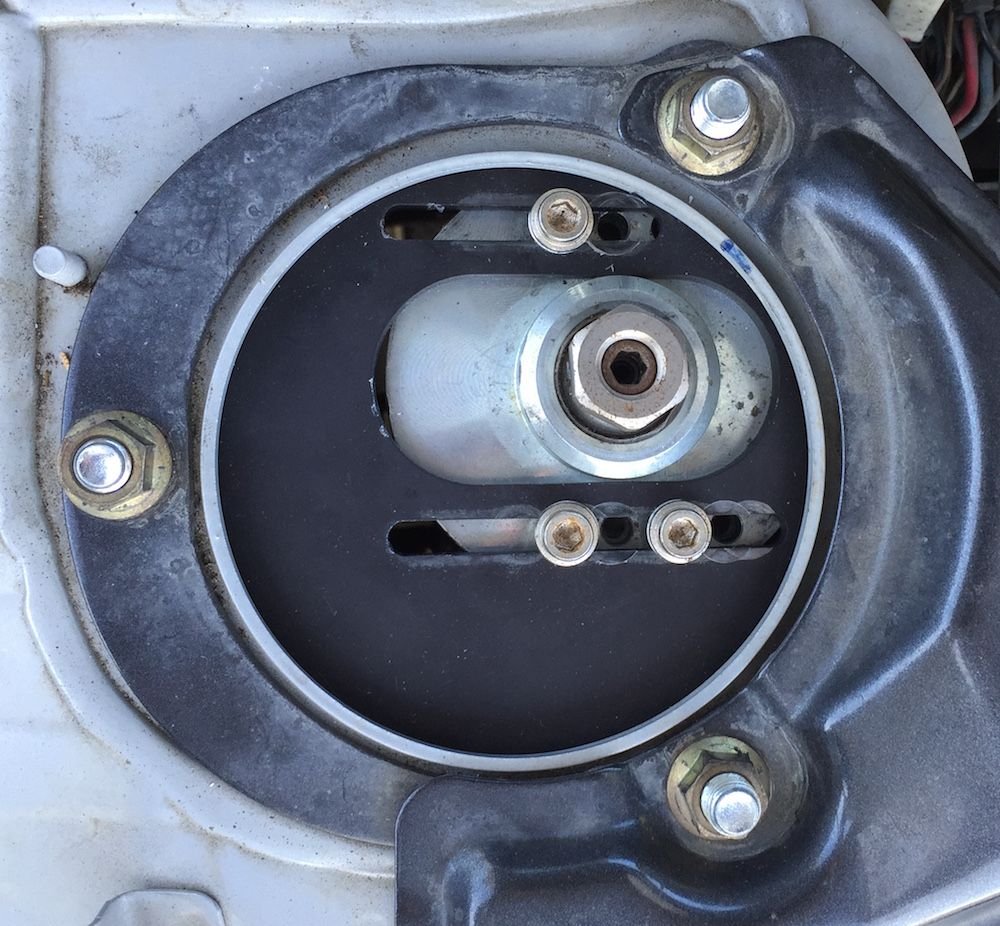

Dallas J's high caster camber plates for Ohlins.
Upper bearing plates modified for strut tower pinch bolt clearance.
Passenger side, -3deg camber, 5.2deg caster. Strut camber bolt in the -1deg position.
Driver side, -3deg camber, 5.6deg caster. Strut camber bolt in the -1deg position.
Alignment results for the following set-up:
Struts bolts are in the -1deg position, offset Duroball control arm bushings and Whiteline roll-center kit. Ride heights are ~25.75"F & ~25.5"R (GND to fender).
Drivers side -3deg camber, 5.6 caster. Pass side -3deg camber, 5.2deg caster.
Dallas J's high caster camber plates for Ohlins.
Upper bearing plates modified for strut tower pinch bolt clearance.
Passenger side, -3deg camber, 5.2deg caster. Strut camber bolt in the -1deg position.
Driver side, -3deg camber, 5.6deg caster. Strut camber bolt in the -1deg position.
#26
EvoM Guru
iTrader: (1)
Hmm. I get 5.3* with the PSRS. I was asking Dallas about getting these a while back. I kind of dropped the ball on it.
#27
Awesome dude, glad you made them and posted pics.
I have recently worked on eeking out the last bit of range from these and I'll probably CNC a new set for myself if anyone wants my old ones for a few bucks. New ones I might make from 3/8" plate and core out to take out a few extra grams and because I can .
I have recently worked on eeking out the last bit of range from these and I'll probably CNC a new set for myself if anyone wants my old ones for a few bucks. New ones I might make from 3/8" plate and core out to take out a few extra grams and because I can .
