"Project Hard Park"

Lots of pics as I have been working on it already for some time. Going to use this to contain all my updates etc which will be basically forever on going hehe.
Car is a 2005 Evo 8 MR which I have owned since I bought it new. It has ~21K miles on it. Made about 360 WHP on 100 octane which is what it’s been fed basically its whole life.

Engine related:
o ECUFlash SD conversion/tuned by Boostin Performance
o Boostin Performance Stage 3 Short-block (Wiesco 1400HD, Manley I Beam)
o Boostin Performance Stage 3 Cylinder-head (Supertech 1mm over valves, dual springs, Ti retainers)
o Boostin Performance Ported Intake Manifold
o English Racing phenolic intake manifold spacer
o GSC Billet S2 Cams
o Strictly Modified Ported Throttle-body with Milspec seals
o FP Cast Race Exhaust Manifold
o FP 71HTA with brand new ported 10.5 MHI Turbine-housing
o Turbo-smart 22psi WGA
o Map Oil-feed line
o AEM Cam gears
o ARP Custom Aged 625 Head studs
o ARP SS Exhaust mani studs
o Kiggly HLA
o MAP O2 Housing
o Swaintech coating of Exhaust manifold/O2 Housing/Turbine Housing
o AMS Turbo back with "test" pipe
o Walbro 255
o ID1300 Injectors
o Perrin fuel rail
o STM COP
o ETS Short-route Ti inter-cooler pipes
o Blitz FMIC
o STM SD Intake with DV Recirculation pipe
o Evo 6 Koyo Radiator and Koyo cap
o Tomei Oil slicer/windage tray
o Racefab wet sump oil pan/pickup
o JDM MR (Metal)BoV
o TorqueSolutions 4piece engine/trans mounts
o Greddy Profec B Spec 2 EBC
o Greddy Turbo Timer
o Evo X Fusible Link
o FatFab Evo X Fusible Link mounting bracket
o Scorpion 200Amp breaker
o AntiGravity 16 cell Li Battery trunk mounted
o Evospec Alt Tensioner
o Evospec Idler pulley
o B/S Delete with GSC "Race Shaft"
o Fluidamper
o Zaklee Clear Cam Gear cover

DriveTrain:
o Converted from MR 6spd to Evo9 5speed, with TRE Stage 3 and oil-cooler adapter.
Gearing:
(Evo 9 1-2, Evo 8 3-4, JDM Evo 5th, OE Final Drive)

1st Gear 2.785:1
2nd Gear 1.950:1
3rd Gear 1.407:1
4th Gear 1.031:1
5th Gear .825:1

o AMS tall shift knob
o STM aluminum under-hood shifter bushings
o TRE Max-Lock 12 plate, 1 way
o TRE transfer-case service and magnetic cover
o Exedy Stage 1 HD Clutch
o Exedy Lightweight Flywheel
o Works SS Clutch-line


Brakes/Suspension:
o Almost all new OEM hardware(nuts/bolts/misc)
o Ohlins DFV valved for 12/14k 7" swift springs
o Swift 65mm thrust washers
o CiroDesignRacing caster/camber plates
o WL Steering Precision
o WL Roll Center
o WL ALK
o WL Rear bump steer
o Complete WL Front and Rear bushing replacement
o "Shaved and trimmed" rear trailing arms for a little more room for wide wheels/tires
o WL 26mm front, 24mm rear swaybars + endlinks and HD rear mount
o Cusco adjustable front sway-bar mount/bracket
o All 6 rear ball joints replaced for HardRace ball joints
o Timken Front hub/bearing assembly
o OEM Rear hub/bearing assembly
o ARP extended studs
o Ebay Wheel-speed sensors in the rear(Old ones fused to rear hubs)
o Castrol SRF brake/clutch fluid
o All new OE caliper bleeders F/R
o Raybestos ST43 Pads F/R
o Girodisc 2 piece rotors F/R
o Girodisc seals/boots for caliper rebuild F/R
o Girodisc Titanium shims R/R
o RacingBrake SS Pistons for front calipers
o AMS Brake Ducting used from Ebay
o “Custom” heat shielding for balljoint/tie rod based on EGBeaters design
o Works SS F/R brake and clutch line
o Firetube on front wheel speed sensors

Int/Ext/Misc
o Weight reduction(Never ending)
o APR Carbon Mirrors
o Converted to non-power windows(OE RS Window Regulators)
o Charcoal Canister delete
o ACD Pump relocated to trunk
o AC Delete
o BR front cross member(north south bar) with front engine mount
o BR Billet Diff mounts(poly) and light weight mustache bar
o DC Sport Titanium front/rear strut tower bars
o Rolled/Pulled rear fenders
o EvoDave front fender mod
o JDM Evo 8 MR Head-lights
o Evo 7 Tail-lights
o Sparco Evo Drivers seat and static rail/non sliding
o Sparco 350mm Suede Steering Wheel
o Splash Steering Wheel Hub Adaptor
o Sabelt 5pt Harness

Wheels and tires. Volks are my previous wheels/tires(To become street wheels)
Track:
o TF Aluminum hub centric rings. 67.1mm x 72.6mm
o Enkei NT03 18x10.5 +30
o Nitto NT01 275x35x18

Old Setup/Street:
o Volk CE28
o F/18x10.5 +18 Had 10mm Ichiba hub-centric spacers
o R/18x9.5 +28
o Need to choose a street tire…

Quote:

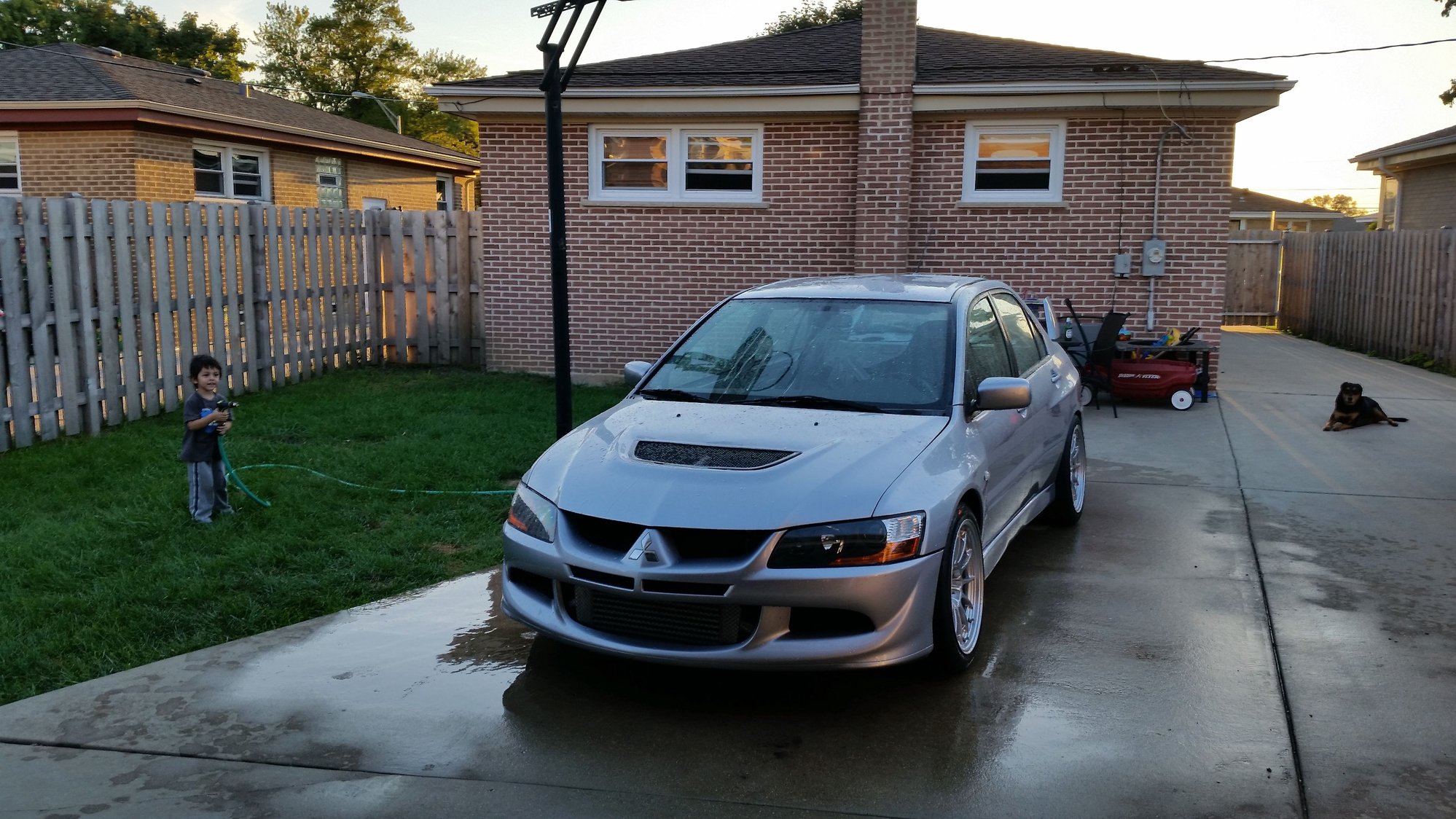

Most current favorite pictures of it and my boy September 2016

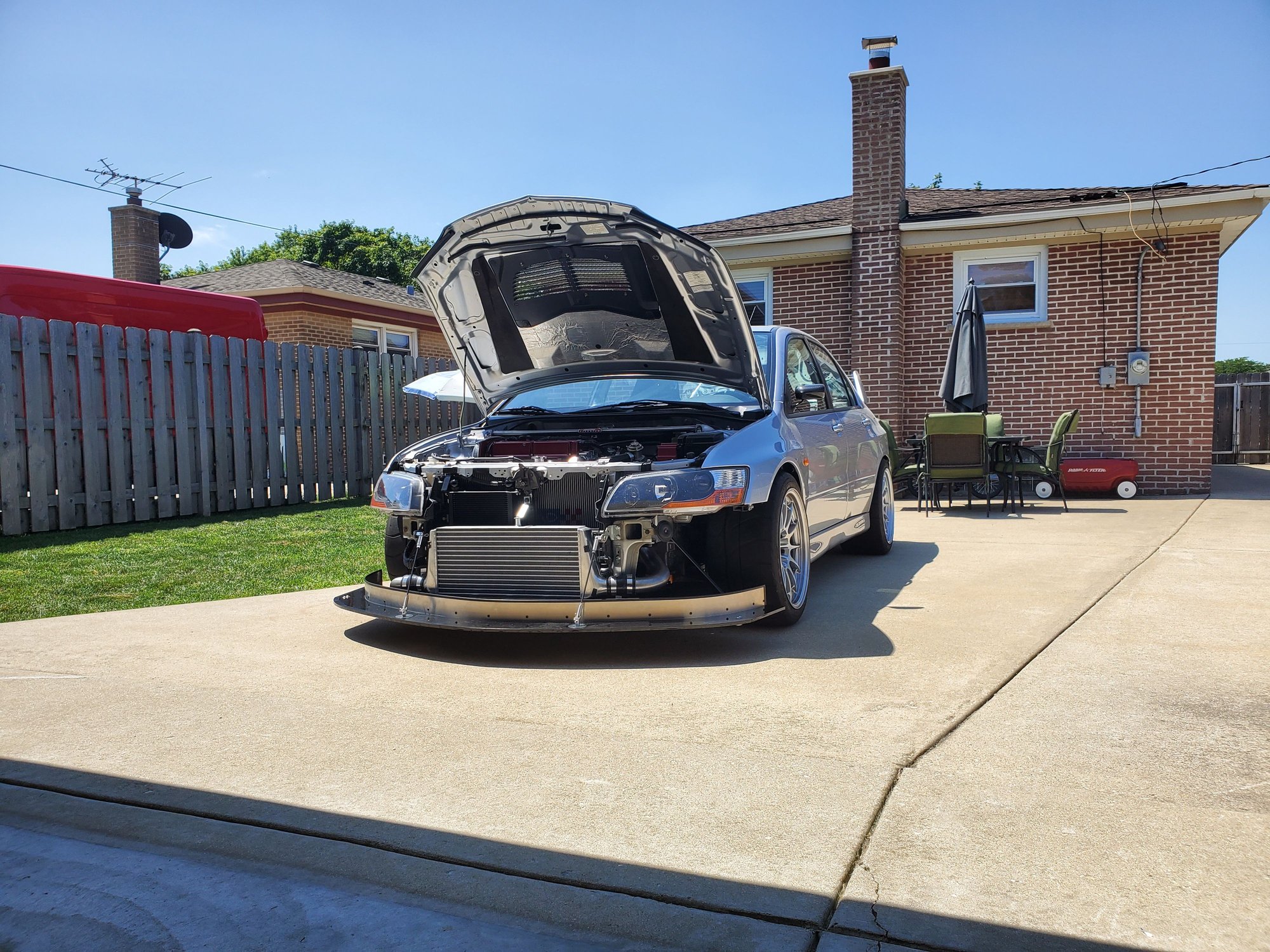

Most current favorite pictures of it July 2017






No suspension/camber on the car on thus wheel sticking out this much.





Enkei NT03 18x10.5 +30





Lots of parts. Girodisc 2piece rotors front back, raybestos st43pads, Girodisc titanium shims, Girodisc seals for front/rear caliper rebuild





Removed front control arms








Brakes/Knuckles removed





Cleaning





Garage





Before removing bushings





Harbor Freight press





Cleaned up some of the extra material.





Pressed out





Pressed in








Racingbrake SS pistons





Assembling coilovers





Ohlins DFV with swift 12/14k springs and valving. Ciroracing caster plates





Rear arms with WL bump steer and trailing arm bushings. Front Roll Center Tierods

Last edited by V.8MR; Oct 29, 2017 at 08:50 PM. Reason: lots of pics, updated info
Offline

Reply With Quote
Old Apr 26, 2016, 02:03 PM   #2
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,451
Thanked 24 Times in 22 Posts

Drives: 05AS MR




Nitto NT01 275x35x18





Brake fluid.
Offline

Reply With Quote
Old Apr 26, 2016, 02:10 PM   #3
EvoM Super Moderator
iTrader: (3)

MinusPrevious's Avatar

Join Date: May 2008
Location: So.Cal
Posts: 3,795
Thanked 326 Times in 319 Posts

Drives: 2006 ランエボ RS

We love this stuff. Great job thus far. Sub'd

Joe
Offline

Reply With Quote
Old Apr 26, 2016, 02:36 PM   #4
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,439
Thanked 350 Times in 333 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Who did, or is going to do, all of the rear fender work? They pretty well pulled already..
Online

Reply With Quote
Old Apr 26, 2016, 03:31 PM   #5
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,451
Thanked 24 Times in 22 Posts

Drives: 05AS MR

Fenders rolled/pulled by myself and a bodyshop who was repairing other stuff and painted it all. I previously had big wheels which required the pull and ive got evo dave front fender mod.

Previous wheels/tires
Volk CE28
F/18x10.5 +18 Had 10mm Ichiba hub-centric spacers as well
R/18x9.5 +28
Yoko Advan a048 265 @ all four
Offline

Reply With Quote
Old Apr 26, 2016, 04:51 PM   #6
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,439
Thanked 350 Times in 333 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Nice. One of these days I'll step up to big tires. Need to work on improving brakes, suspension, and safety first.
Online

Reply With Quote
Old Apr 26, 2016, 05:18 PM   #7
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,451
Thanked 24 Times in 22 Posts

Drives: 05AS MR

I see you have power under control. I want to run NASA TT2 or 3 one day so I believe they have strict power/weight requirements. Im on stock turbo and run 100 octane only. Makes about 360 whp last time it was tuned.

These cars are over 10 years old now. So I will probably replace my walbro, fluids, plugs, filters, get retuned etc before I get it on the track. Just in case.
Offline

Reply With Quote
Old Apr 26, 2016, 05:22 PM   #8
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,439
Thanked 350 Times in 333 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Power is definitely under control, 390whp at 23-24psi on the mustang dyno. Did all that stuff before I started tracking the car. Now that I started tracking, the close to $5k in the upgrades beyond boltons (cams, valve springs, turbo, big injectors) would have definitely been better spent on Ohlins and better brakes...lol.
Online

Reply With Quote
Old Apr 26, 2016, 05:35 PM   #9
EvoM Guru
iTrader: (8)

razorlab's Avatar

Join Date: Aug 2003
Location: Alameda, ca
Posts: 10,602
Thanked 162 Times in 144 Posts

Drives: a laptop connected to your ECU.

So you are aiming to fit the 18x10.5's on the stock body?
Offline

Reply With Quote
Old Apr 26, 2016, 05:43 PM   #10
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,451
Thanked 24 Times in 22 Posts

Drives: 05AS MR

Offline

Reply With Quote
Old Apr 28, 2016, 10:14 PM   #11
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,451
Thanked 24 Times in 22 Posts

Drives: 05AS MR

Tires mounted today, 1 set of HardRace rear ball joints came in. I think I will replace all the ball-joints in the rear since its all off. Will need to order 2 more sets. Will take several weeks to get more of these balljoints since they are drop shipping them direct from Taiwan...

To see the wheels/tires today, I must say I was a little moist.









Last edited by V.8MR; Aug 2, 2016 at 06:39 PM.
Offline

Reply With Quote
Old Apr 28, 2016, 11:01 PM   #12
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,439
Thanked 350 Times in 333 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Wow. Those 275 NT01's on 10.5" wheels are just as squared up as my 255 nt01's on 9.5's lol.
Online

Reply With Quote
Old Apr 29, 2016, 07:39 AM   #13
Evolved Member
iTrader: (25)

Join Date: May 2008
Location: Ohio
Posts: 2,102
Thanks: 0
Thanked 9 Times in 9 Posts

Drives: '06 Evo MR, '13 CBR500r, '15 CRV Touring, '15 Civic Si coupe

Nice job so far, thanks for using Castrol SRF, great fluid for racing.
Offline

Reply With Quote
Old Apr 30, 2016, 01:28 PM   #14
Evolved Member
Thread Starter
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,451
Thanked 24 Times in 22 Posts

Drives: 05AS MR

Quote:
Originally Posted by GTijoejoe View Post
Nice job so far, thanks for using Castrol SRF, great fluid for racing.
Why do you say thanks? Are you affiliated?
Offline

Reply With Quote
Old Apr 30, 2016, 02:21 PM   #15
Newbie
iTrader: (2)

Join Date: May 2013
Location: College park
Posts: 15
Thanks: 0
Thanked 3 Times in 3 Posts
Those sure are some wide wheels. How hard was it getting the stock bushings out? I got the smaller press and i was having a hard time getting them out
Offline
