STM ***new product release***



****Now added to our online catalog*****
http://www.streettunedmotorsports.co...drivetrain.htm


This product is meant to be preventive maintenance for anyone that has an Exedy multi plate clutch in an Evo 8 or 9.

We used a makeshift part that did the same thing this does all last year. With our meticulous attitude we decided to make a better looking and more adjustable part and offer it to everyone.

Before this part we were replacing the clip every time we went to the track. All last year we ran this in our record breaking stock block Evo and never once had another issue.

The concept is real simple, It does the same thing the extra wave springs do but with a little more authority and on the back side of the clutch fork.

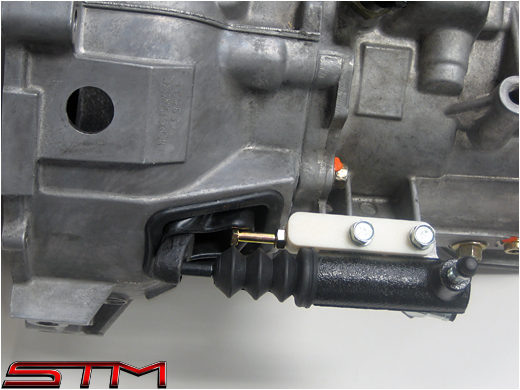

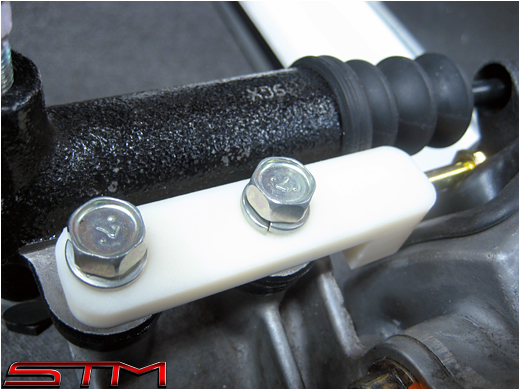

I was going to wait until friday when our shipment of the actual parts will be here, But I wanted to get the word out a little sooner. Today we got the rapid prototype back from the machine shop and test fitted it. Here are some pics of what we have come up with.


On to the pics.

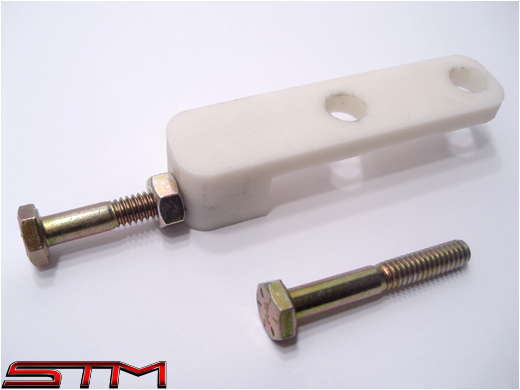

-Made of Billet aluminum right here in Rochester, NY
-Includes two Grade 8 zinc plated bolts for further adjustability
-Saves you lots of time and money pulling your tranny out because of hard/fast shifts
-Installs in minutes



These parts are going to retail for 75.00 shipped and will start shipping on Friday.

Pre orders can be taken over the phone and through paypal. These will also be added to our online catalog at www.stmtuned.com in the near future.

Paypal address is Sales@streettunedmotorsports.com. If you decide to take that route please let us know what the payment is for in the comment box.

As always, Thanks for all of your support!


-STM

Last edited by EmeryatSTM; Oct 31, 2009 at 11:09 AM.
Old Oct 19, 2009, 06:15 PM
  #2
Evolved Member
iTrader: (19)

Draven83's Avatar

Join Date: Jun 2007
Location: VA or NY
Posts: 1,070
Likes: 0
Received 0 Likes on 0 Posts
nice part EM. ill need one when my car gets up there on the 7th.
Old Oct 19, 2009, 06:26 PM
  #3
Evolved Member
iTrader: (55)

Evoryder's Avatar

Join Date: Apr 2004
Location: ☼ Florida ☼
Posts: 7,383
Likes: 0
Received 10 Likes on 10 Posts
So this prevents the fork from fully extending? It's a stopper?
Old Oct 19, 2009, 06:27 PM
  #4
Newbie

SilverEmperor's Avatar

Join Date: Dec 2005
Location: Central Jersey
Posts: 62
Likes: 0
Received 0 Likes on 0 Posts
This part works great, I've been using the TurboTrix one for years.
Old Oct 19, 2009, 07:19 PM
  #5
Evolved Member
iTrader: (13)

evane's Avatar

Join Date: Apr 2008
Location: Lincoln, Nebraska
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
this interests me...I'm just curious of the advantages of this? does this prevent the clutch fork from slamming back further than it's supposed to between hard shifts? if so what happens when the clutch fork slams back to far?
Old Oct 19, 2009, 07:24 PM
  #6
Evolved Member
iTrader: (11)

binky's Avatar

Join Date: Oct 2007
Location: Connecticut / Massachusetts U.S.A
Posts: 1,430
Likes: 0
Received 1 Like on 1 Post
Originally Posted by evane
this interests me...I'm just curious of the advantages of this? does this prevent the clutch fork from slamming back further than it's supposed to between hard shifts? if so what happens when the clutch fork slams back to far?
The clip on the Exedy clutch could pop off and you have to take the transmission off to put it back on. This prevents that from happening.


-Bink
Old Oct 19, 2009, 07:32 PM
  #7
Evolved Member
iTrader: (13)

evane's Avatar

Join Date: Apr 2008
Location: Lincoln, Nebraska
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
alright cool...what are the affects of the clip popping off?
Old Oct 19, 2009, 07:57 PM
  #8
Evolved Member
iTrader: (13)

evane's Avatar

Join Date: Apr 2008
Location: Lincoln, Nebraska
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
i think i answered my own question...the clip pops off the TOB and then your unable to drive the car right?
Old Oct 19, 2009, 08:04 PM
  #9
Former Sponsor
Thread Starter
iTrader: (79)

EmeryatSTM's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 2,340
Likes: 0
Received 3 Likes on 3 Posts
^^ Yes, and it costs you a clutch install to fix it.



-Em
Old Oct 19, 2009, 08:12 PM
  #10
Evolved Member
iTrader: (13)

evane's Avatar

Join Date: Apr 2008
Location: Lincoln, Nebraska
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by EmeryatSTM
^^ Yes, and it costs you a clutch install to fix it.



-Em
damn! just to put a clip back on...
Old Oct 19, 2009, 08:14 PM
  #11
Former Sponsor
Thread Starter
iTrader: (79)

EmeryatSTM's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 2,340
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by evane
damn! just to put a clip back on...

The tranny has to come out of the car to fix it.


-Em
Old Oct 19, 2009, 08:22 PM
  #12
Evolved Member
iTrader: (13)

evane's Avatar

Join Date: Apr 2008
Location: Lincoln, Nebraska
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by EmeryatSTM
The tranny has to come out of the car to fix it.


-Em
yeah I know im just saying your taking the tranny off just to put a clip back on...
Old Oct 20, 2009, 05:18 AM
  #13
Evolved Member
iTrader: (14)

4G63 T's Avatar

Join Date: Aug 2004
Location: MD
Posts: 1,126
Likes: 0
Received 0 Likes on 0 Posts
Only good for exedy?
Old Oct 20, 2009, 06:36 AM
  #14
Former Sponsor
Thread Starter
iTrader: (79)

EmeryatSTM's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 2,340
Likes: 0
Received 3 Likes on 3 Posts
The Exedy's are the only ones with the known issue. if another clutch does the same thing, This should work for it as well.


-Em
Old Oct 20, 2009, 06:53 AM
  #15
Evolved Member
iTrader: (41)

mdsevo06's Avatar

Join Date: Jan 2006
Location: San Diego
Posts: 1,432
Likes: 0
Received 1 Like on 1 Post
The prototype looks like it's made from Delrin.
