New STM Upper IC Pipe Kit
Thread Starter
Former Sponsor
iTrader: (79)
Joined: Jun 2007
Posts: 2,340
Likes: 5
From: Rochester, NY
New STM Upper IC Pipe Kit
The STM Upper Intercooler Pipe Kit for the Evo VIII-IX is tig welded, 2.5" aluminum piping for light-weight benefits and includes 6 stainless T-Bolt clamps and 3 high-quality black, silicone couplers.
Here, it's pictured with a TiAL blow off valve flange but is also available with a stock Evo flange.
Designed to work with your stock intake manifold.
- Fits Buschur front mount cores.
- For stock intercooler, you will need to use the factory, angled coupler connecting to the tank.
- We have test-fitted these pipes on stock and Buschur cores, but they should also work with aftermarket cores utilizing the stock-placement of piping.
You will need a small battery kit.
PLEASE NOTE: These pipes are aluminum and if you OVER-tighten the T-Clamps there is a chance of crimping the pipe.
- Lightweight 2.5" Polished Aluminum Piping
- Bead-Rolled Pipe Ends

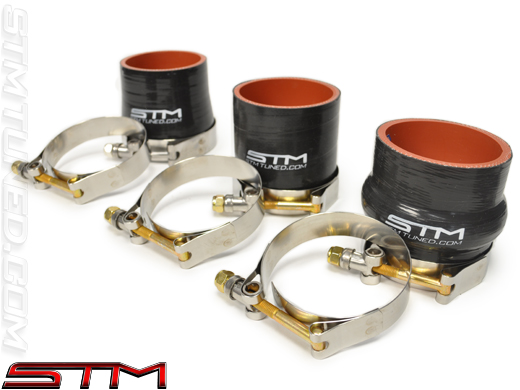

- 3 High-Quality Couplers
- 6 Stainless T-Bolt Clamps
- TiAL or Stock BOV Flange
- Made in the USA!
Installed pictures coming soon! Any questions feel free to ask!
www.stmtuned.com
Trending Topics
you say if you over tighten the t-bolt clamps youll crimp the piping....when do you know when to stop haha? is there a ft-lb # you could torque them to that would help us?
can we get some pics too?!
can we get some pics too?!
Last edited by evane; Mar 28, 2010 at 11:00 AM.
Thread Starter
Former Sponsor
iTrader: (79)
Joined: Jun 2007
Posts: 2,340
Likes: 5
From: Rochester, NY
With a t-bolt clamp you can pretty much bend any pipe. Its kinda common sense where to stop. With bead rolls there is no reason to go crazy. Mine hold over 40 psi with not one issue at all.
-Em
https://www.evolutionm.net/forums/ev...-tune-stm.html
here is a pic and the video later posted in there has a shot of them. This is their other evo
here is a pic and the video later posted in there has a shot of them. This is their other evo
