9 - next up we have to run the main harness wire into the car. The instructions indicate to run the wire across the engine compartment to the passenger side and into the cockpit then back over to the driver side

I prefer to drill a small hole in the fire wall over the gas pedal area and run the wire up over the top of the streering colum and ventilation ducts

In order to do this carefully and methodically - I suggest removing the instrument cluster so you can gain access for careful wiring

Here is the hole through the firewall



Go up through the top of the ventilation ducts over the steering colum and back down towards the change holder by the fuse block



Collest thing about this kit - and typical Buschur genious is that when its properly installed you can NOT SEE anything !!!!!!!!

Not so critical on a car like mine - but it may be a nice touch for those who crave a stealth mod!

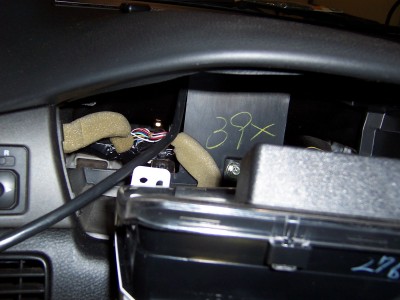

10 - Mount the controll unit in the coin holder in the lower left dash



11 - drill holes in the back of the coil holder for the wires to pass through - here is a rough idea of where they pass

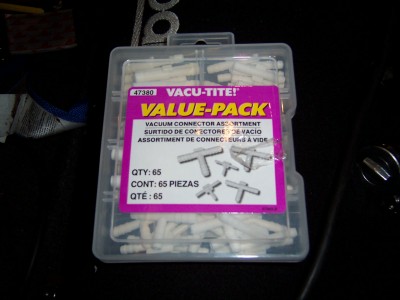

Do yourself a favor and pick up this loveyly assortment of vacume T's and adapters at any auto zone - it comes in helpful

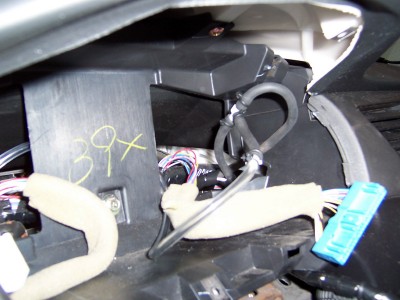

12 - connect the plastic hose from the alcohol controller to the hose going to your boost gauge like this . Or if you dont have a mechanical boost gauge then route a line into the engine and tap off a manifold boost source.

MAKE SURE you ZIP TIE all connections - the instructions with the kit suggest you use a bad of crazy clue on the connections - NOT a bad idea considering what would happen if the hose pops off



Al,Great documentation. I have put this on my next to do list, real soon!



I am addicted to this alcohol and I cant wait to try it out on my car - I am sprry its taking me so long to finish the install but I really enjoy working on my car and I do everything very slowly



13 - strip and connect the 4 matching wires from the 10 ' harness to the matching wires on the controller

Ground the black wire on the controller to a suitable ground

Plug in the power line and attached mini fuse to the fuse location # 7 - winshield wiper fuse

(the controller is internally fused and the wiper fuse will work normally)



14 - your kit is installed ! Now follow the enclosed materials for the proper testing procedure

ALL units that I sell come with free tuning advice on how to set up the progressive controller. When you order your unit send me a email or PM with your list of mods and I will suplly you with the appropriate settings for the progressive controller for your set up.

The flash for the alcohol kit is available seperately.
