Oct 14, 2009 | 05:29 PM

#316

Jack_of_Trades

Evolved Member

iTrader: (17)

Joined: Jun 2007

Posts: 3,523

Likes: 2

From: Opelika,AL

Quote:

Originally Posted by Slo_crx1

Alright, I went looking back through the rom again and I'm pretty sure I understand the MAP VE calibration part. Next step is to find out what percentage of an increase is the Omni 4 bar over the standard 3 bar and make the changes...man I should have bought a stock sensor, this would be so much easier lol.

Here is all of the scalings for it. If you need scalings for PSI based boost control with the OMNI 4 Bar, I have those too.

Code:

<scaling name="MAP 16bit" units="kPa" toexpr="x*0.4072" frexpr="x/0.4072" format="%.1f" min="0" max="450" inc="0.4072" storagetype="uint16" endian="big"/>
<scaling name="psia16" units="psia" toexpr="x/(4.23*2)" frexpr="x*(2*4.23)" format="%.1f" min="0" max="32" inc="0.1" storagetype="uint16" endian="big"/>
<scaling name="psia8" units="psia" toexpr="x/(4.23*2)" frexpr="x*(2*4.23)" format="%.1f" min="0" max="30.1" inc="0.1" storagetype="uint8" endian="big"/>
<scaling name="BoostErrorPsi" units="psi" toexpr="(x-128)/(8*4.23)" frexpr="x*8*4.23+128" format="%.1f" min="-3.8" max="3.8" inc="0.1" storagetype="uint16" endian="big"/>

Last edited by Jack_of_Trades; Oct 14, 2009 at 05:32 PM.

Oct 14, 2009 | 05:32 PM

#317

Oettinger

Evolving Member

Joined: Aug 2007

Posts: 195

Likes: 0

From: Barcelona

Quote:

Originally Posted by l2r99gst

OK, I have tested DMA/LiveMap successfully for v7-bigmap today. Instead of posting the instructions here, I think I will email phenem a patched ROM so that maybe he can add it and the XML definitions to his posts.

Also I modified my version of the LiveMap app quickly to allow the bigmaps to fit nicer (scroll bars, etc) and have the XMLs setup based on my header scaling. I will send that to him as well. I think ziad has a better version of the LiveMap app that he is working on, but I haven't had a chance to play around with it yet.

Eric

Oct 14, 2009 | 06:49 PM

#318

03whitegsr

Evolved Member

iTrader: (8)

Joined: Nov 2006

Posts: 4,001

Likes: 17

From: Utah

Quote:

Originally Posted by Jack_of_Trades

Here is all of the scalings for it. If you need scalings for PSI based boost control with the OMNI 4 Bar, I have those too.

Code:

<scaling name="MAP 16bit" units="kPa" toexpr="x*0.4072" frexpr="x/0.4072" format="%.1f" min="0" max="450" inc="0.4072" storagetype="uint16" endian="big"/>
<scaling name="psia16" units="psia" toexpr="x/(4.23*2)" frexpr="x*(2*4.23)" format="%.1f" min="0" max="32" inc="0.1" storagetype="uint16" endian="big"/>
<scaling name="psia8" units="psia" toexpr="x/(4.23*2)" frexpr="x*(2*4.23)" format="%.1f" min="0" max="30.1" inc="0.1" storagetype="uint8" endian="big"/>
<scaling name="BoostErrorPsi" units="psi" toexpr="(x-128)/(8*4.23)" frexpr="x*8*4.23+128" format="%.1f" min="-3.8" max="3.8" inc="0.1" storagetype="uint16" endian="big"/>

I think that covers all the scaling equations needed for direct boost and Speed density?

Oct 14, 2009 | 06:59 PM

#319

Slo_crx1

Evolved Member

iTrader: (9)

Joined: Sep 2007

Posts: 821

Likes: 1

From: Simpson, PA

Quote:

Originally Posted by Jack_of_Trades

Here is all of the scalings for it. If you need scalings for PSI based boost control with the OMNI 4 Bar, I have those too.

Code:

<scaling name="MAP 16bit" units="kPa" toexpr="x*0.4072" frexpr="x/0.4072" format="%.1f" min="0" max="450" inc="0.4072" storagetype="uint16" endian="big"/>
<scaling name="psia16" units="psia" toexpr="x/(4.23*2)" frexpr="x*(2*4.23)" format="%.1f" min="0" max="32" inc="0.1" storagetype="uint16" endian="big"/>
<scaling name="psia8" units="psia" toexpr="x/(4.23*2)" frexpr="x*(2*4.23)" format="%.1f" min="0" max="30.1" inc="0.1" storagetype="uint8" endian="big"/>
<scaling name="BoostErrorPsi" units="psi" toexpr="(x-128)/(8*4.23)" frexpr="x*8*4.23+128" format="%.1f" min="-3.8" max="3.8" inc="0.1" storagetype="uint16" endian="big"/>

Thanks!

I saw you had them posted earlier but I was under the assumption they were for PSI based boost control instead of for SD scaling.

Oct 14, 2009 | 09:16 PM

#320

knochgoon24

Evolving Member

iTrader: (2)

Joined: Feb 2009

Posts: 109

Likes: 0

From: State College, PA

Quote:

Originally Posted by GST Motorsports

People still think the fuel map "AFR" values should match the actual AFR the car is running?

Quote:

Originally Posted by Fast_Freddie

I know they don't represent actual AFR but if the scaling is close the AFRs will be close...

I'm running an Evo 8 Ecu on my '97 Talon using the 2g DSM MAF. To get it to run correctly, I had to rescale the MAF. After some trial and error, my car now runs within about +/-0.5 of the AFR map across most of a run. This also made it so 100 load happens just as I cross into positive pressure at 0psi. It's a night and day difference between when I just had a rough guess at a scaling (2g DSM MAF scaling minus the difference between the DSM and Evo MAF adders.) , and the one that I scaled.
My LTFT are now within +/- 3%.

Oct 14, 2009 | 09:51 PM

#321

shifty180

Newbie

iTrader: (1)

Joined: Aug 2008

Posts: 14

Likes: 0

From: Australia

can i do some pin swaps and run the usdm or edm 96530706 on my jdm evo 7 ecu?
or would i need a usdm ecu to run that rom?

Oct 14, 2009 | 10:18 PM

#322

GotWheelHop

Evolved Member

iTrader: (39)

Joined: Aug 2007

Posts: 807

Likes: 1

From: Las Vegas

Sweeeeet. This makes going over to the Live-tuning ROM so much easier once it is known to work with this new romID.

Oct 14, 2009 | 11:28 PM

#323

nonschlont

Evolved Member

iTrader: (3)

Joined: Mar 2007

Posts: 1,760

Likes: 2

From: Ca

Quote:

Originally Posted by tephra

I've posted up my version of the BIGMAP translator. 3rd post

The only complicated thing is remembering to make the last axis value 1000000 (so when you copy your fuel map in and the rpm axis is shorter make the last value 1000000.

If someone can workout how to fix that I would be happy

hey tephra, Im having an issue w/ your big map translator... I DL it, extract files, and when I open it up, theres no worksheet, just the file folders, and .xml doc.
I DL'ed the other big map translator for the VIII's and it just pops up w/ the excell file...
Running vista

DL'ed phenems rom to check it out... Very cool stuff!

Patiently awaiting the IX rom...

Oct 14, 2009 | 11:32 PM

#324

Evo_Jay

Evolved Member

iTrader: (17)

Joined: Jun 2005

Posts: 3,419

Likes: 14

From: Chico, CA (NOR-CAL)

I dont know if any said this, but it should be noted in the first post (& second) that immobilizer hex in 9653 needs to be the same as the ROM you changing from. Its looks like its set for cars that had the 9496 ROM, but 9417 and 9642 ROMS have are different.

EDIT: Someone mentioned it.

Quote:

Originally Posted by evovette

Loaded this into my car and it wouldnt start. My rom ID was equiped with 96420008. Did some comparisons and the immobilizer HEX in my rom is 0x0055 not the 0x0040 like this was set up for. Reflashed with the new immobilizer hex and it fired right up.

Last edited by Evo_Jay; Oct 14, 2009 at 11:34 PM.

Oct 14, 2009 | 11:38 PM

#325

SeanV

Evolving Member

Joined: Feb 2008

Posts: 214

Likes: 1

From: South Africa

Quote:

Originally Posted by tephra

WTF - why is evoscan restarting???!?!?

Sean send me the ROM

@gmail.com

Thx Tephra, everything sorted out now, car is running just great.

My problem was related to one of my previous settings for Lean Spool, that was copied over from my old ROM.

Oct 14, 2009 | 11:40 PM

#326

tephra

Thread Starter

EvoM Guru

iTrader: (6)

Joined: Feb 2007

Posts: 9,486

Likes: 67

From: Melbourne, Australia

Quote:

Originally Posted by nonschlont

hey tephra, Im having an issue w/ your big map translator... I DL it, extract files, and when I open it up, theres no worksheet, just the file folders, and .xml doc.

Did u get the .xlsx from the 3rd post?

Oct 14, 2009 | 11:44 PM

#327

SeanV

Evolving Member

Joined: Feb 2008

Posts: 214

Likes: 1

From: South Africa

Quote:

Originally Posted by Jack_of_Trades

These scalings SHOULD be correct now.

Awesome job JOT.....

Small request

Any chance we can also have the scale settings coverted for us, that make use of a Defi boost sensor (as posted over here) and who make use of Bar instead of PSI.

Thx

Oct 14, 2009 | 11:46 PM

#328

nonschlont

Evolved Member

iTrader: (3)

Joined: Mar 2007

Posts: 1,760

Likes: 2

From: Ca

Quote:

Originally Posted by tephra

Did u get the .xlsx from the 3rd post?

yes sir... deleted it, and re-DL'ed it 3 times.

Oct 15, 2009 | 12:09 AM

#329

SeanV

Evolving Member

Joined: Feb 2008

Posts: 214

Likes: 1

From: South Africa

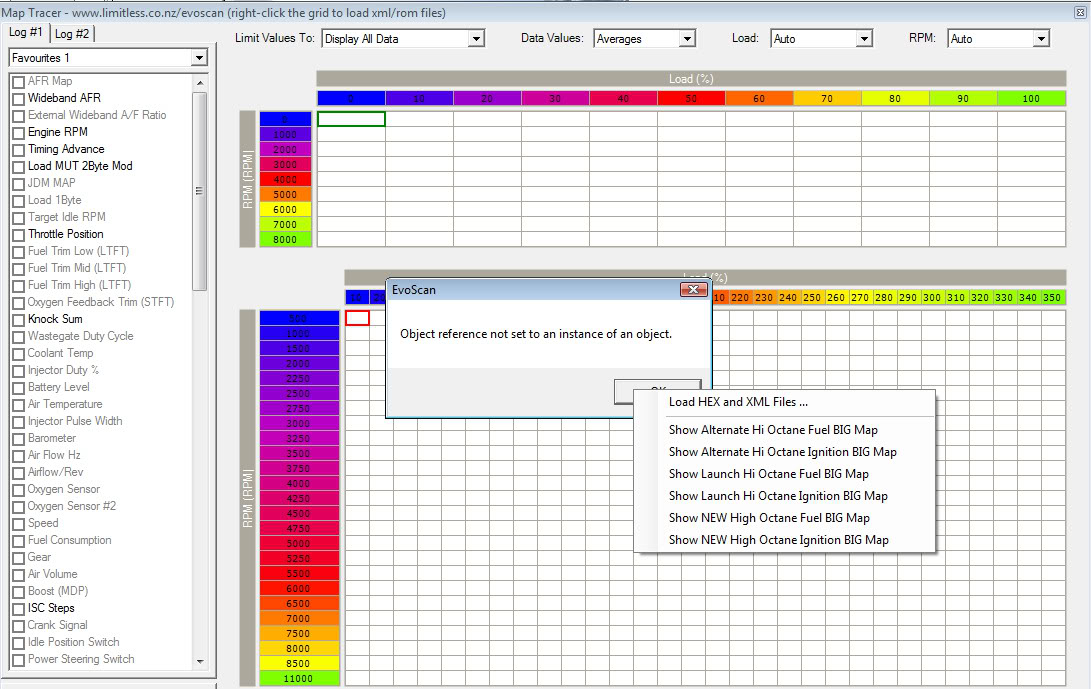

One last issue I am still having with the big maps relating to Map Tracer and EvoScan V2.7 Beta2......

When doing a maptrace from a log which was done with bigmaps flashed on the car...

I have copied the relevant "bigmap" xml files from the C:\Program Files\OpenECU\EcuFlash - Bigmaps\rommetadata\mitsubishi\evo
folder to the C:\EvoScan v2.7 Beta2\ROMS folder but.....

I still get the following error when I try to open the Hex file with the big maps in.
Anybody been able to get maptracer working with the BigMaps?

Thx

Name: Untitled-2-4.jpg
Views: 0
Size: 161.2 KB

Name: Untitled-2-4.jpg
Views: 0
Size: 161.2 KB

Oct 15, 2009 | 04:05 AM

#330

tephra

Thread Starter

EvoM Guru

iTrader: (6)

Joined: Feb 2007

Posts: 9,486

Likes: 67

From: Melbourne, Australia

Yay I found the bug in 88590714

hope to have a new version for testers tommorow and then maybe release on the weekend
