Jul 1, 2008 | 05:38 AM

#2596

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by hytek369

does anyone know the part number for the trunk bar bolts? if anyone knows the size, i can probably go to a hardware store. please pm me. thanks

MS240129 (for the RS trunk bar correct?) ..sorry..it does not give a size.

Jul 1, 2008 | 05:40 AM

#2597

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by Methodical4u

do you have one for the oil return line? Maybe it's called oil return tube? I can't find it anywhere.

Evo 8 : MR464925
Evo 9 : 1225A001

Jul 1, 2008 | 05:42 AM

#2598

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by LakerRaider

i need the part number to these little yellow plastic screws or grommets to fasten my side skirt back. I looked on mitsubishiparts.net but i dont know the name of them. Thanks for all help!

MB344789

Jul 1, 2008 | 05:44 AM

#2599

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by Syrihl

Does anybody know if the part number 6400B002WA is for the prepainted white Evo 9 bumper? If not, what is the specific part number? I've asked multiple dealerships and the parts reps keep telling me that none of the bumpers come painted.

If you order that part number (and that is the only number you can order), you will actually get a pre-painted white bumper. Mitsu does not offer them any other color, but yet they go thru the trouble of painting them all white, rather than just leaving them primed. So ya, that is for a white 9 bumper

Jul 1, 2008 | 05:46 AM

#2600

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by SLVRNBLK

Part# for stock shifter. Thank you!

The actual lever is MN168249...the base is MR246297
...them from there there is a bunch of small parts.

Jul 1, 2008 | 05:49 AM

#2601

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by guyver858

What is the part number for the "EVAPORATIVE EMISSION CANISTER BRACKET"?
It is located on the driver side rear bumper area.

Thanks in advance.

MR993694

Jul 1, 2008 | 05:52 AM

#2602

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by WarmPepsi

part numbers for the side windows? front, rear, and little mini window on both sides please.

Thanks.

FL: MR573343
FR: MR573344
RL: MR525741
RR: MR525742
Left little: MR525825 (weatherstrip for it MR525833)
Right little: MR525826 (weatherstrip for it MR525834)

Jul 1, 2008 | 07:50 AM

#2603

Ruff Ryda

Evolving Member

iTrader: (13)

Joined: Apr 2007

Posts: 281

Likes: 0

From: Harrisburg, IL

Need vacuum line assembly the runs from the boost solenoid to the actuator and the compressor housing. I would like to have numbers on all of the parts(vacuum line, "T", and clamps. Thanks!

Jul 1, 2008 | 08:03 AM

#2604

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by Ruff Ryda

Need vacuum line assembly the runs from the boost solenoid to the actuator and the compressor housing. I would like to have numbers on all of the parts(vacuum line, "T", and clamps. Thanks!

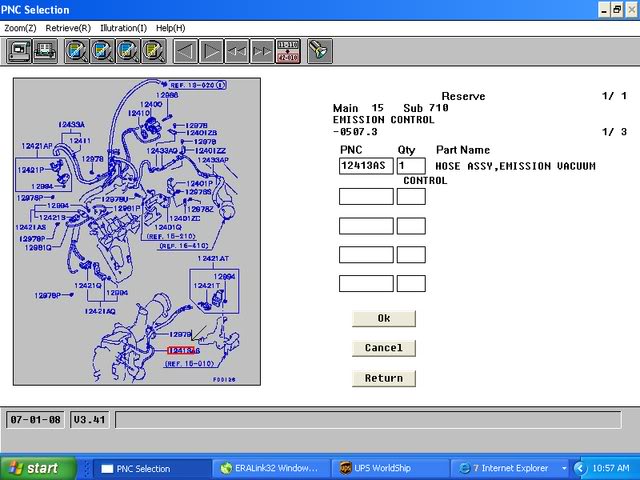

Well, that vacumn line assembly actually comes with everything. It is one of those things you can not get seperate pieces for (see pic). The part numbers vary:

12/02 - 7/04 = MN143555
8/04 - 7/05 = MN156396
8/05 - 11/06 = 1632A117

Name: evoboostlines.jpg
Views: 0
Size: 55.3 KB

Name: evoboostlines.jpg
Views: 0
Size: 55.3 KB

Jul 1, 2008 | 08:30 AM

#2605

Ruff Ryda

Evolving Member

iTrader: (13)

Joined: Apr 2007

Posts: 281

Likes: 0

From: Harrisburg, IL

Hey, could you make that pic any bigger? I would like to save that. Thanks

Jul 1, 2008 | 09:32 AM

#2606

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by Ruff Ryda

Hey, could you make that pic any bigger? I would like to save that. Thanks

Sure...this about the best I can do without distorting it. If this does not work, and you have access to a fax, you can drop me a PM and Ill gladly send it over.

Name: evoboostlinesLG.jpg
Views: 0
Size: 76.5 KB

Name: evoboostlinesLG.jpg
Views: 0
Size: 76.5 KB

Jul 1, 2008 | 10:24 AM

#2607

Ruff Ryda

Evolving Member

iTrader: (13)

Joined: Apr 2007

Posts: 281

Likes: 0

From: Harrisburg, IL

Quote:

Originally Posted by Spins4

Sure...this about the best I can do without distorting it. If this does not work, and you have access to a fax, you can drop me a PM and Ill gladly send it over.

This is perfect! Thanks!

Jul 1, 2008 | 11:08 AM

#2608

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by Ruff Ryda

This is perfect! Thanks!

No prob!

Jul 1, 2008 | 12:34 PM

#2609

ch47god

Evolving Member

iTrader: (7)

Joined: Feb 2005

Posts: 214

Likes: 0

From: Pul-I-Alam, Lowgar, Afghanistan

Anybody know the part number for the clips that hold the lower lip onto the front bumper cover for an '03 Evo. Not the clips that connect the lower lip to the splashguard, but connect the lip to the actual bumper cover. Been to the dealer twice and got the wrong parts, the manual at the stealership doesn't show the part at all, and my laptop is 4500 miles from me atm with my books in it. Thanks.

Jul 1, 2008 | 12:54 PM

#2610

Spins4

Evolved Member

iTrader: (122)

Joined: Nov 2005

Posts: 899

Likes: 0

From: Coventry, R.I

Quote:

Originally Posted by ch47god

Care to point them out?

Name: EVO8FRONTBUMPERLG.jpg
Views: 0
Size: 89.5 KB
