All Part Number Request Go Here
Originally Posted by hbruce16
I need the part number for the sticker that goes on the driver's side inside door panel on a 2003 Evo. It is the one that says the tires are high performance and will wear quicker then regular tires. Also Mitsu recommends using snow tires.... You get the picture. (it's on all Evos, but on the newer ones it's right next to the ACD instruction sticker)
I got my door panel replaced under warranty due to wear on the felt on the trim around the PW switches, but the sticker wasn't on the new door panel.
I really want the sticker and my parts department can't seem to locate it.
thanks in advance...
I got my door panel replaced under warranty due to wear on the felt on the trim around the PW switches, but the sticker wasn't on the new door panel.
I really want the sticker and my parts department can't seem to locate it.
thanks in advance...
Originally Posted by hbruce16
I need the part number for the sticker that goes on the driver's side inside door panel on a 2003 Evo. It is the one that says the tires are high performance and will wear quicker then regular tires. Also Mitsu recommends using snow tires.... You get the picture. (it's on all Evos, but on the newer ones it's right next to the ACD instruction sticker)
I got my door panel replaced under warranty due to wear on the felt on the trim around the PW switches, but the sticker wasn't on the new door panel.
I really want the sticker and my parts department can't seem to locate it.
thanks in advance...
I got my door panel replaced under warranty due to wear on the felt on the trim around the PW switches, but the sticker wasn't on the new door panel.
I really want the sticker and my parts department can't seem to locate it.
thanks in advance...
what about the part # for the center panel. the one with the radio and a/c and stuff like that. i have an RS already but i want the one that macthes the trimming around the shifter and ashtray. (same color) and a price if possible.
Originally Posted by hawaiievo
what about the part # for the center panel. the one with the radio and a/c and stuff like that. i have an RS already but i want the one that macthes the trimming around the shifter and ashtray. (same color) and a price if possible.
Labels: MR500935, MR500932, MR568314
Newbie
Joined: Feb 2005
Posts: 3
Likes: 0
From: Boca Raton, FL
Hey Justin, You are THE MAN!
I'm trying to convert my 03 evo back to the stock airbox and BOV. Don't have any of the bits and pieces.
Have gleaned these part numbers from this fantastic thread so far:
mn153356 BODY ASSY,AIR CLEANER (Stock Airbox)
MN153353 Air Cleaner box cover (top)
Air box bracket bolts: MS240121
Overflow bolts: MS240142 Where are these used?

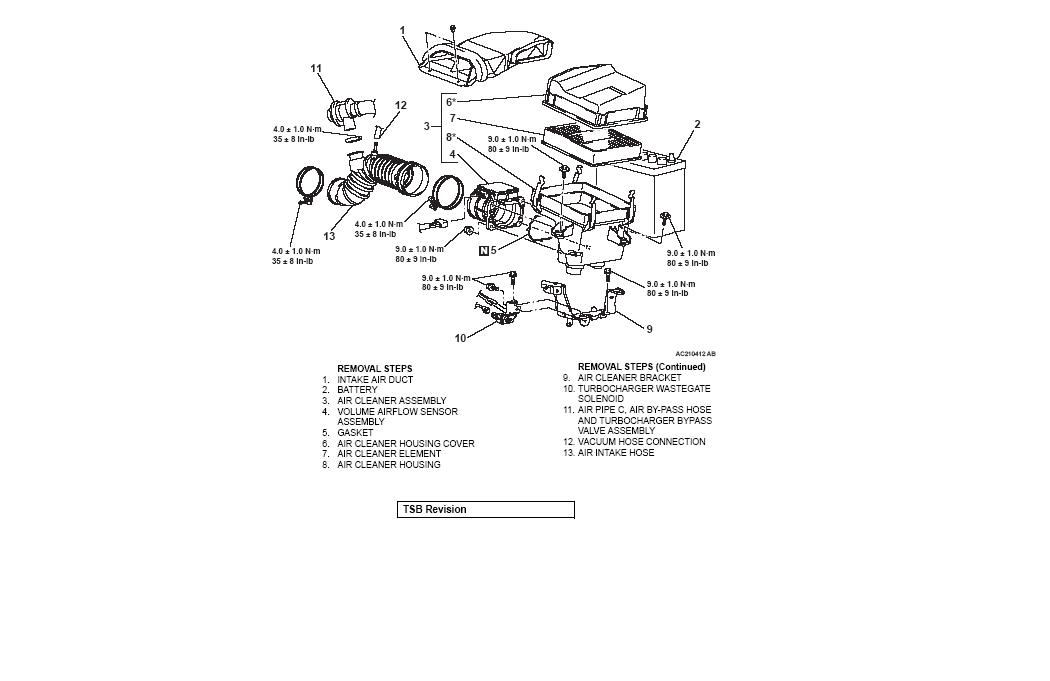

MN143343 hose line for the blow off valve , Is this #13 air intake hose in attached picture?
MN153284 bov
Still Need:
Air Intake Hose
Air Cleaner Bracket
Band Clamps for air intake hose
Band Clamps for BOV
Mass Air Sensor Gasket
I'm trying to convert my 03 evo back to the stock airbox and BOV. Don't have any of the bits and pieces.
Have gleaned these part numbers from this fantastic thread so far:
mn153356 BODY ASSY,AIR CLEANER (Stock Airbox)
MN153353 Air Cleaner box cover (top)
Air box bracket bolts: MS240121
Overflow bolts: MS240142 Where are these used?
MN143343 hose line for the blow off valve , Is this #13 air intake hose in attached picture?
MN153284 bov
Still Need:
Air Intake Hose
Air Cleaner Bracket
Band Clamps for air intake hose
Band Clamps for BOV
Mass Air Sensor Gasket
Originally Posted by WeAreDevo
Hey Justin, You are THE MAN!
I'm trying to convert my 03 evo back to the stock airbox and BOV. Don't have any of the bits and pieces.
Have gleaned these part numbers from this fantastic thread so far:
mn153356 BODY ASSY,AIR CLEANER (Stock Airbox)
MN153353 Air Cleaner box cover (top)
Air box bracket bolts: MS240121
Overflow bolts: MS240142 Where are these used? These are for the coolant overflow tank on the passenger side of the car.
MN143343 hose line for the blow off valve , Is this #13 air intake hose in attached picture? Nope, see below for #13. For the hose that comes from the upper IC pipe to the BOV, you'll need MR993869.
MN153284 bov
Still Need:
Air Intake Hose MR571592
Air Cleaner Bracket MN156291
Band Clamps for air intake hose MF661135 & MF661142
Band Clamps for BOV MD173306
Mass Air Sensor Gasket MD151672
I'm trying to convert my 03 evo back to the stock airbox and BOV. Don't have any of the bits and pieces.
Have gleaned these part numbers from this fantastic thread so far:
mn153356 BODY ASSY,AIR CLEANER (Stock Airbox)
MN153353 Air Cleaner box cover (top)
Air box bracket bolts: MS240121
Overflow bolts: MS240142 Where are these used? These are for the coolant overflow tank on the passenger side of the car.
MN143343 hose line for the blow off valve , Is this #13 air intake hose in attached picture? Nope, see below for #13. For the hose that comes from the upper IC pipe to the BOV, you'll need MR993869.
MN153284 bov
Still Need:
Air Intake Hose MR571592
Air Cleaner Bracket MN156291
Band Clamps for air intake hose MF661135 & MF661142
Band Clamps for BOV MD173306
Mass Air Sensor Gasket MD151672
'04 RS T-Case: MR498813 (Unsure of why it wasnt listed. That is the correct part number. Perhaps their database is not current.?.?)
'05 RS/MR T-Case: 3200A011 (I expect this to change sometime, but this is it for now. This also seems to work on W5M5 and W6MA transmissions as well.)
'05 RS/MR T-Case: 3200A011 (I expect this to change sometime, but this is it for now. This also seems to work on W5M5 and W6MA transmissions as well.)
Last edited by JustDSM; Feb 17, 2005 at 02:02 AM.
Could you please post the part numbers for the 4 studs on the turbine housing.
Two of the five fasteners used to conncect the turbine housing to the O2 housing are studs, the remaining three are bolts. Similarly on the exhaust manifold side of the turbine housing two of the four fasteners are also studs and the remaining two are bolts.
I am replacing the turbine housing with a 10.5 and these studs are seized and seem like they will snap before they release so I need to purchase new ones.
thanks
Two of the five fasteners used to conncect the turbine housing to the O2 housing are studs, the remaining three are bolts. Similarly on the exhaust manifold side of the turbine housing two of the four fasteners are also studs and the remaining two are bolts.
I am replacing the turbine housing with a 10.5 and these studs are seized and seem like they will snap before they release so I need to purchase new ones.
thanks
Last edited by jfh; Feb 17, 2005 at 04:55 PM.
