DIY COP Coil On Plug Setup
The following users liked this post:
sontoofly (Apr 17, 2018)
Apr 19, 2013, 10:35 AM
#18
Demon you're a saint, as much of an oxymoron as that is to say. I did mine last night and they turned out beautifully. I ended up spending $125 for the coils, plugs, tubing, heat shrink, and wire if anyone is curious. I still have to fab up a mounting plate can't imagine it costing more than $20
Apr 19, 2013, 11:42 AM
#19
I haven't mounted mine yet as I haven't had time since the plates were made. I had mine made out of 1/8" aluminum using the same dimensions in the drawing above along with my notes and it's perfect (literally, perfect). I need to measure the springs and such for the coils which I may end up stretching a tiny bit
I'd change my forum name but I'm un-creative and I've used this one for a long time
I'd change my forum name but I'm un-creative and I've used this one for a long time
Apr 19, 2013, 07:13 PM
#21

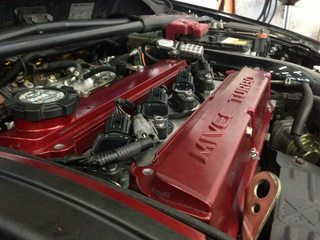

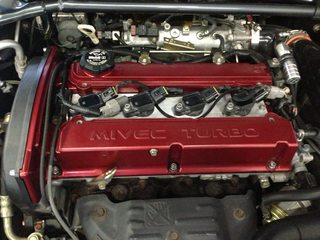

Test-fitted the plate today and took a drive around the block.
To attach the coils I used:
4x 6mm x 1mm x 25mm socket cap bolts to attach the coils
4x 6mm x 1mm x 20mm socket cap bolts to attach the plate to the valve cover
18x 6mm flat washers (3 as a spacer between the plate the the coil, one on top of the coil for the bolt head for a total of 16; 2 for the mounting bolts)
Plate fits like a charm, car drives great. Can't notice any difference as it was all less than 30mph driving. As of now I'll be running this setup full-time. I need to figure out something with the wires though, they're messy looking!
To attach the coils I used:
4x 6mm x 1mm x 25mm socket cap bolts to attach the coils
4x 6mm x 1mm x 20mm socket cap bolts to attach the plate to the valve cover
18x 6mm flat washers (3 as a spacer between the plate the the coil, one on top of the coil for the bolt head for a total of 16; 2 for the mounting bolts)
| Attachment 334352 | Attachment 334353 |
Plate fits like a charm, car drives great. Can't notice any difference as it was all less than 30mph driving. As of now I'll be running this setup full-time. I need to figure out something with the wires though, they're messy looking!
Last edited by llDemonll; Apr 25, 2013 at 04:23 PM.
The following users liked this post:
WelDun1 (Apr 5, 2018)
Apr 20, 2013, 11:02 AM
#23
What do you guys use to seal those? for now, the heat shrink created a very snug, but not totally waterproof seal. On most of the pins I had to use pliers to pull the pins through from the connection side because I couldn't push them hard enough (without fear of bending) from the back side to get them to clip in
Apr 20, 2013, 11:54 AM
#24
I cut the Wires down to fit better, and with the 3 pin Evo Connector i totally elimated it and used Heat shrink connectors, because as spoolinup said water is the NME. Plus it looks WAY cleaner without them.
And honestly i never plan for it to go back to stock, these work to well.
And this way it looks more "Stockish"
And honestly i never plan for it to go back to stock, these work to well.
And this way it looks more "Stockish"
Apr 20, 2013, 12:23 PM
#26
I cut the Wires down to fit better, and with the 3 pin Evo Connector i totally elimated it and used Heat shrink connectors, because as spoolinup said water is the NME. Plus it looks WAY cleaner without them.
And honestly i never plan for it to go back to stock, these work to well.
And this way it looks more "Stockish"
And honestly i never plan for it to go back to stock, these work to well.
And this way it looks more "Stockish"
Apr 20, 2013, 03:14 PM
#27
What do you guys use to seal those? for now, the heat shrink created a very snug, but not totally waterproof seal. On most of the pins I had to use pliers to pull the pins through from the connection side because I couldn't push them hard enough (without fear of bending) from the back side to get them to clip in
Apr 23, 2013, 05:55 PM
#29
If anyone is interested in this any time soon please let me know, I am going to be getting a few aluminum plates cut for friends in the near future and I can have extras cut as well for $40 shipped. Plates can be for an 8 or a 9 (the 8's are the same but without the four notches on the outside)
Apr 25, 2013, 02:15 PM
#30
here is mine pics of it, you can see how i just eliminated that Evo connector and went direct.
Uploaded with ImageShack.us
Uploaded with ImageShack.us
Uploaded with ImageShack.us
Uploaded with ImageShack.us
