My 2.3 on a Green hits peak tq at under 4000 RPM and full spool at 3800 RPM.

I am making 390 whp but 450 tq....and power falls off at 6000 RPM.

A 2.4 should spool even quicker and a 20G on an oem hotside even more so.
evo8vz is offline
Old Mar 10, 2018, 02:33 AM
  #17
Newbie

400s's Avatar

Join Date: Mar 2014
Location: C
Posts: 66
Received 6 Likes on 5 Posts
Did you do your pre-checks before getting someone to tune your evo?

Boost leaks etc?
400s is offline
Old Mar 10, 2018, 07:46 AM
  #18
Evolved Member
iTrader: (3)

cursedsm's Avatar

Join Date: Sep 2009
Location: Pinckney, Michigan
Posts: 2,365
Received 6 Likes on 6 Posts
Originally Posted by ConEvo View Post
Update.

This weekend I tried to adjust the wastegate preload. the preload was far too stiff. Maybe 6 full turns. I adjusted it to 3 full turns and took it for a road test. It seems that it had slightly better spool but nowhere near from what is supposed to spool. Probably the hotside must have cracks. Here's the new log


Regards
Having to much preload on your wastegate isn't a bad thing, it would actually help the spool. You have other problems going on. I have that spool on a turbo the size of a black on my 2.4 so you have a leak somewhere.
cursedsm is offline
Old Mar 10, 2018, 01:15 PM
  #19
Newbie
Thread Starter

ConEvo's Avatar

Join Date: Sep 2017
Location: EvoNation
Posts: 55
Received 0 Likes on 0 Posts
Another probable cause which is likely to be the problem. When I decided to replace the wastegate, I ordered a Forge IWG for evo 9, as i own an EVO 9 MR. When I tried to install it, i noticed that it was not a direct fit to the hotside door. I googled the turbo part number, just to find out that it was a turbo from EVO8 MR. I do not know if it has anything to do with this, but probably the door stays open. Forge, Turbosmart and other companies that offer actuators, they offer actuators for evo4-8, and different for evo 9. Anyhow, the turbo, manifold and also the wastegate will be replaced soon but I before I switch turbos I want to find where this boost delay comes from
ConEvo is offline
Old Mar 14, 2018, 06:01 AM
  #20
Evolved Member
iTrader: (25)

ExViTermini's Avatar

Join Date: Jan 2005
Location: Virginia
Posts: 1,758
Likes: 0
Received 12 Likes on 11 Posts
The wastegate difference is due to the bigger compressor housing on the evo9 turbo's. Hotsides are identical in external sizing and wgate arm placement.

Have you checked mechanical cam timing?
ExViTermini is offline
Old Mar 14, 2018, 06:41 AM
  #21
Newbie
Thread Starter

ConEvo's Avatar

Join Date: Sep 2017
Location: EvoNation
Posts: 55
Received 0 Likes on 0 Posts
Originally Posted by ExViTermini View Post
The wastegate difference is due to the bigger compressor housing on the evo9 turbo's. Hotsides are identical in external sizing and wgate arm placement.

Have you checked mechanical cam timing?
Not yet
ConEvo is offline
Old May 23, 2018, 06:31 AM
  #22
Newbie
Thread Starter

ConEvo's Avatar

Join Date: Sep 2017
Location: EvoNation
Posts: 55
Received 0 Likes on 0 Posts
Sooo how are guys doin? As I am patiently waiting for my parts to arrive, I decided to share some pictures of my build



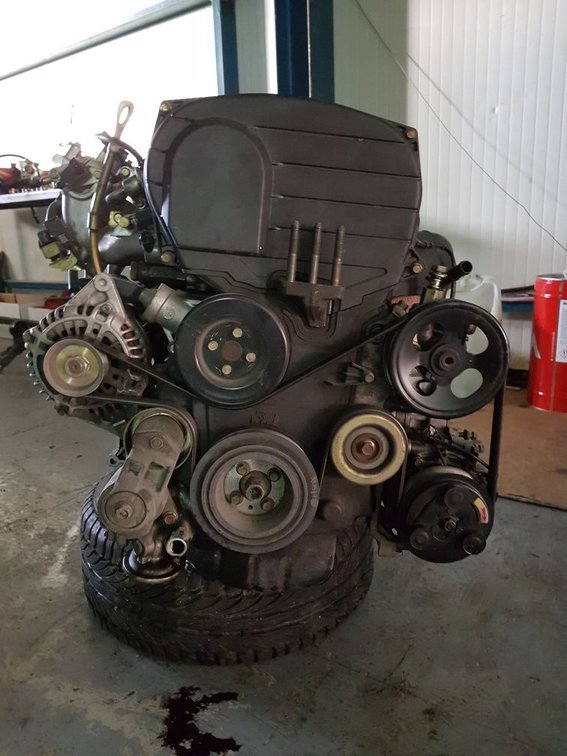

4G64 Block. It was actually in a very good condition. I even avoided to bore it, which was preferred for obvious reasons (Thin cylinder walls, HG issues etc)


4G64 Block. It was actually in a very good condition. I even avoided to bore it, which was preferred for obvious reasons (Thin cylinder walls, HG issues etc)


Manley Billet 100m Crank


Manley Billet 100m Crank


Manley Billet 100m Crank

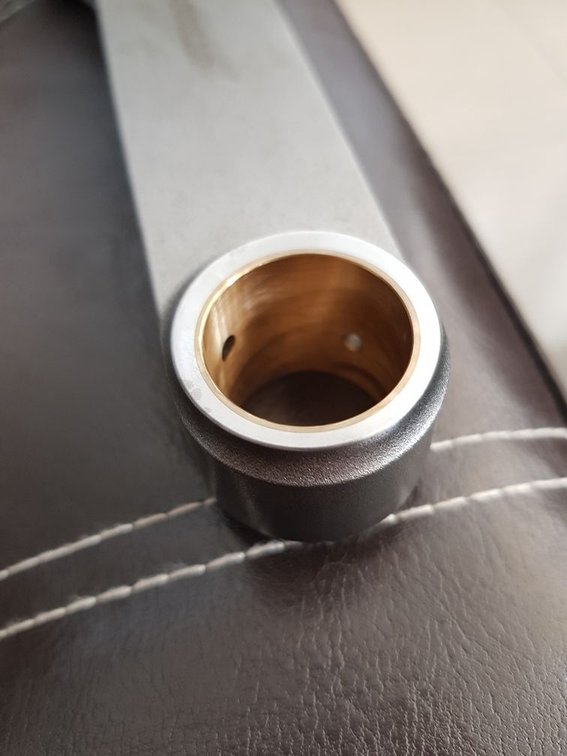

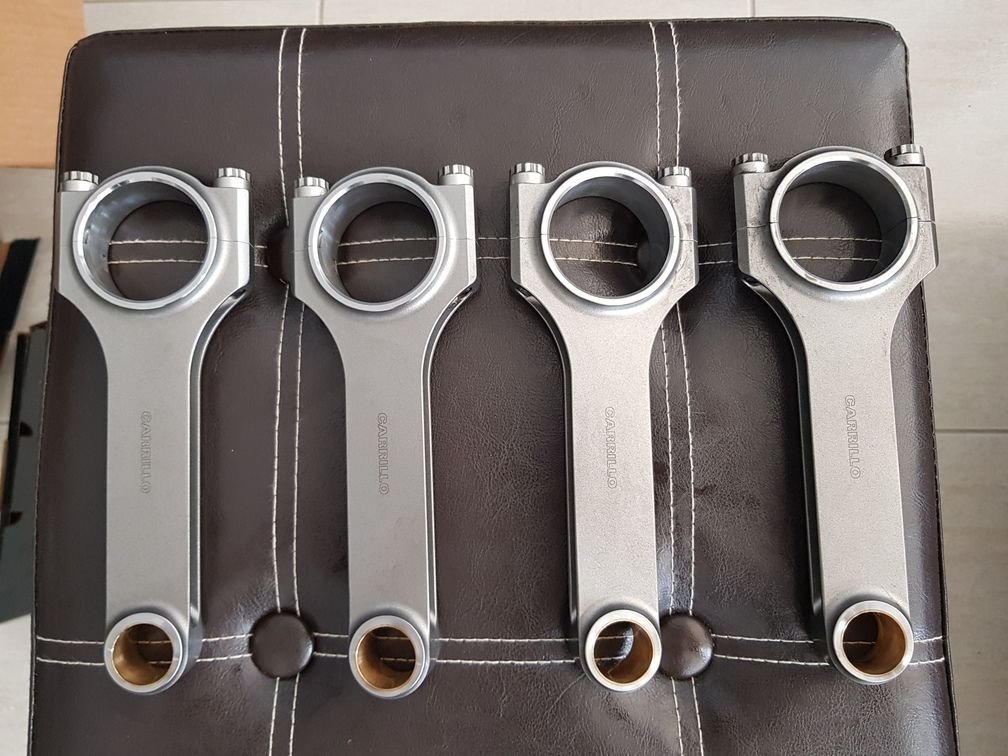

Carrillo H-Beam 156mm Rods. Surprised by the quality


Carrillo H-Beam 156mm Rods. Surprised by the quality


Carrillo H-Beam 156mm Rods. Surprised by the quality


Wiseco 1400HD pistons


Wiseco 1400HD pistons


Wiseco 1400HD pistons


Stock Rod-Piston


Carrillo Rod-Wiseco Piston. 135gr lighter than stock!!!

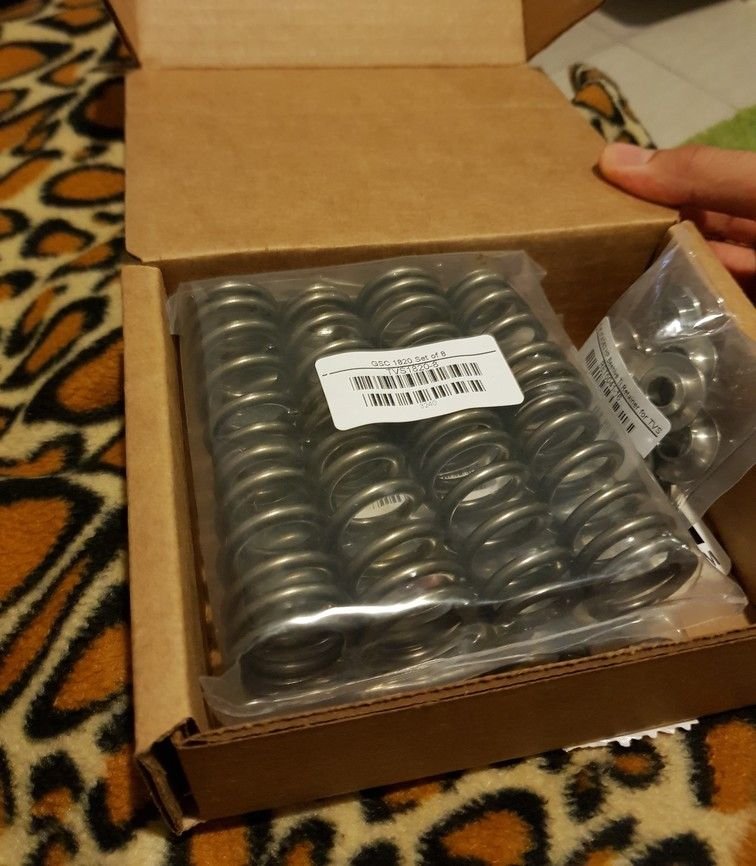

GSC Beehive Spring & Retainer Kit


GSC Beehive Spring & Retainer Kit


GSC Race Balance Shaft


GSC Race Balance Shaft

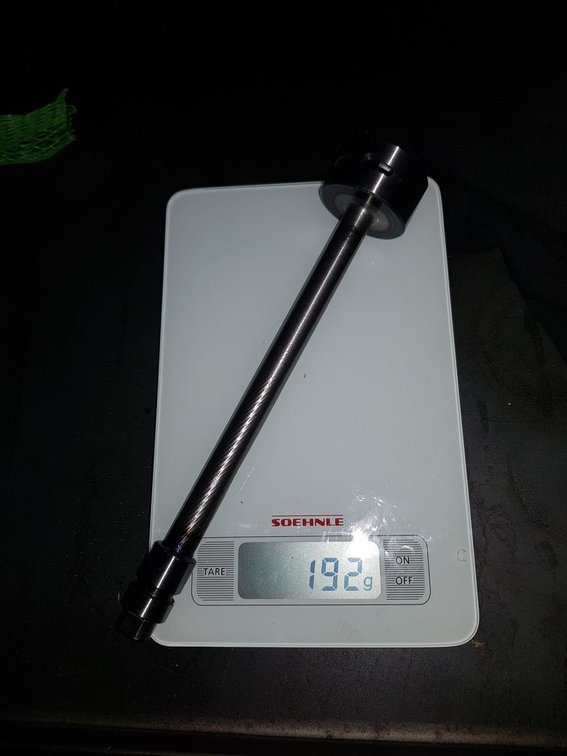

GSC Race Balance Shaft Weight. 751gr lighter than Oem


OEM Balance Shaft

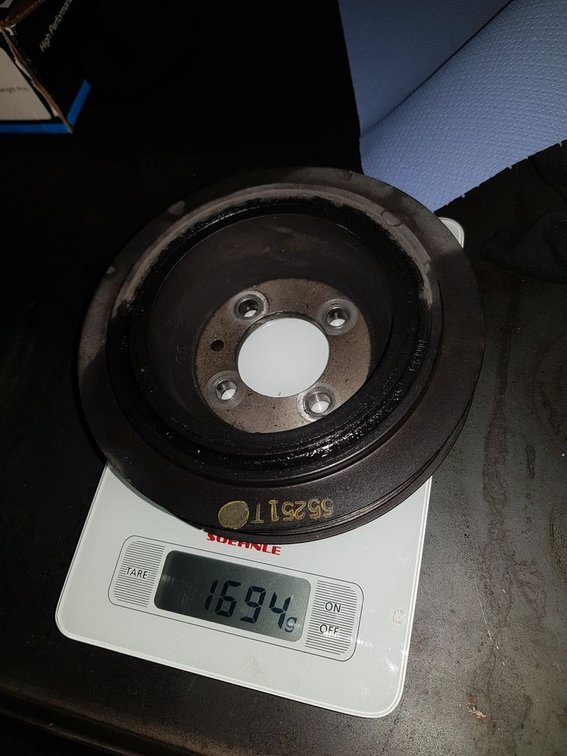

Fluidampr Crank Pulley. Actually 1393gr heavier than oem, but totally worth it for its job


OEM Crank Pulley


ARP Crank Pulley Bolt


GSC R2 Cams


GSC R2 Cams

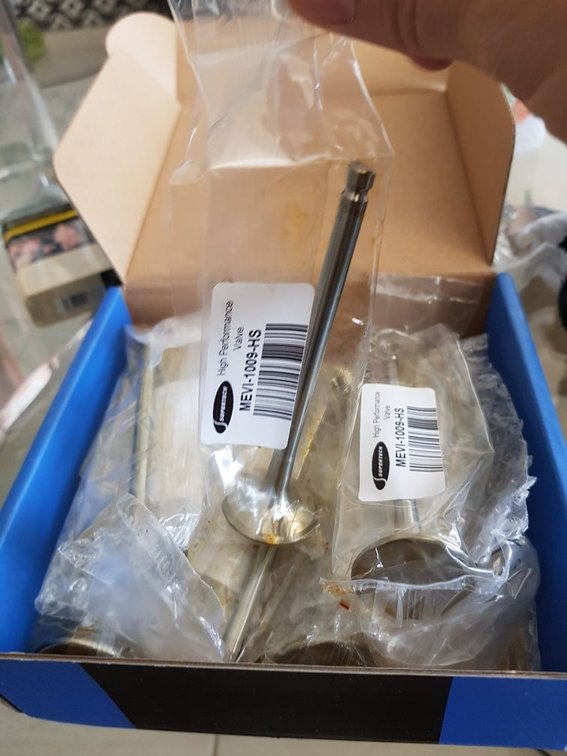

Supertech Sodium Filled Exhaust Valves (OEM size)


Supertech Black Nitride Intake Valves (OEM size)


Supertech Valve Seals


GSC Spring Seats

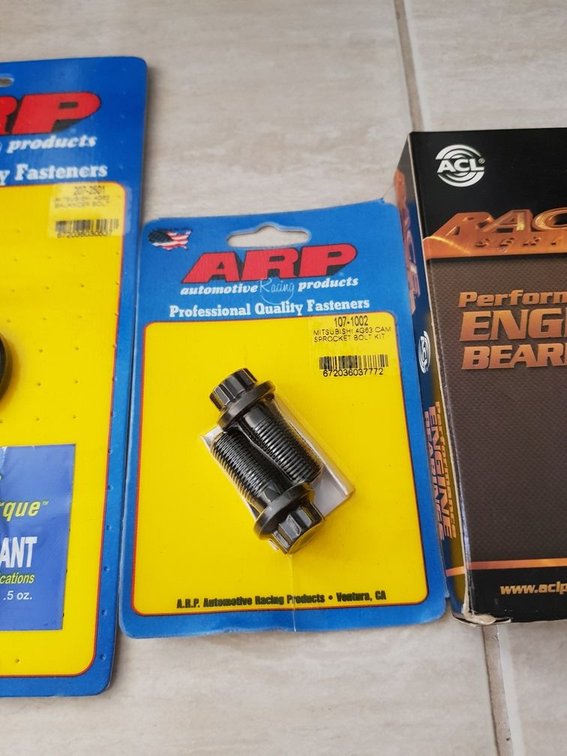

ARP Cam Pulley Bolts

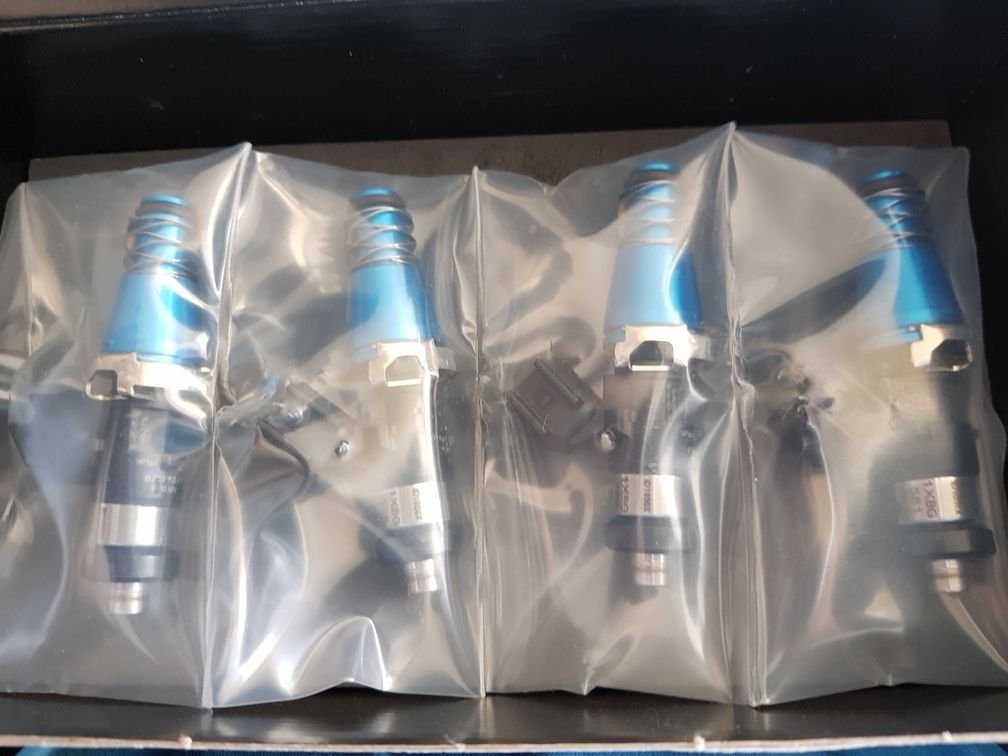

ID 1050x Injectors


AMS Fuel Rail


ACL Crank and Rod Bearings. Also and Thrust Bearings were included in the build

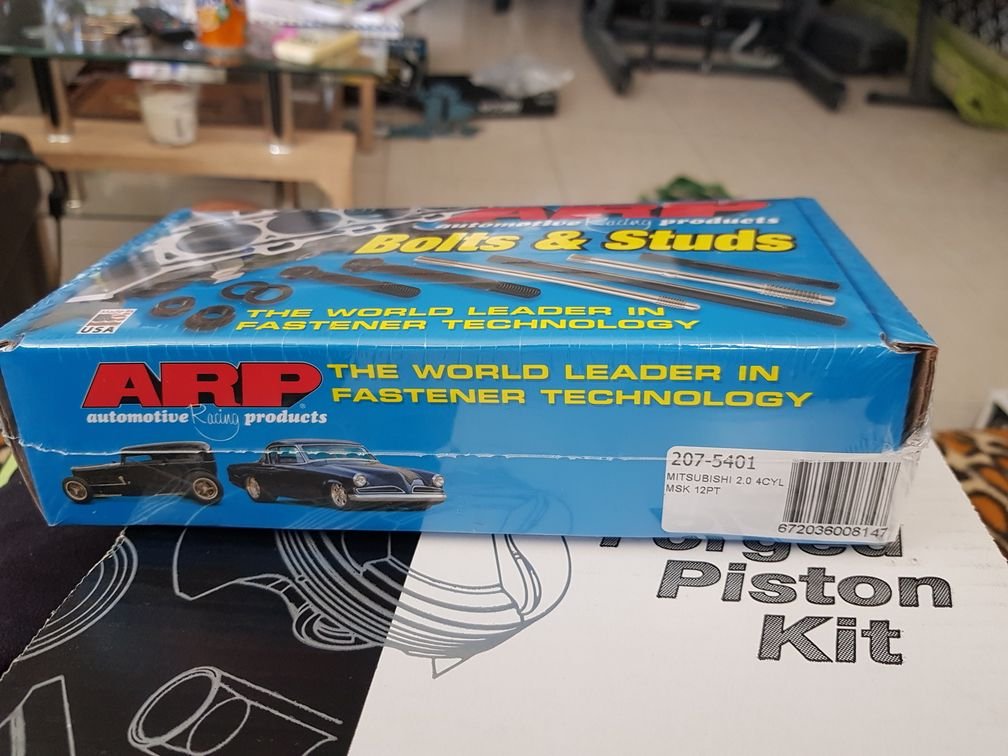

ARP Main Studs

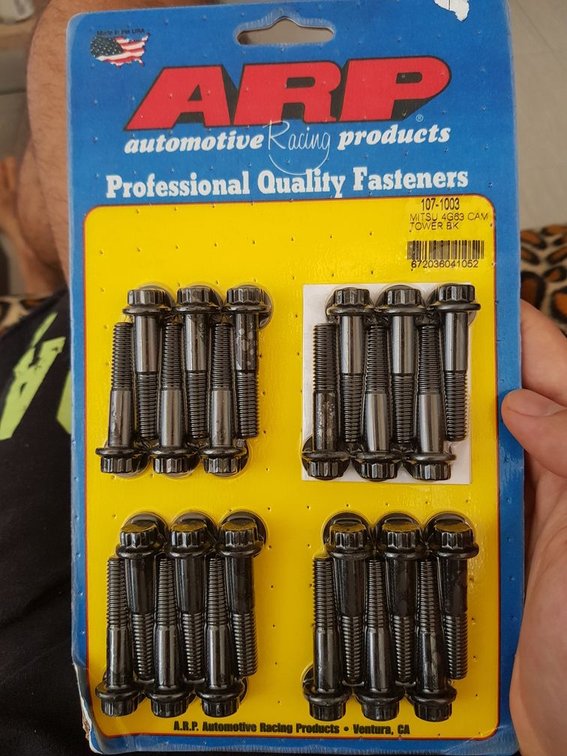

ARP Cam Tower Bolts





ORC Twin Clutch


ORC Twin Clutch


Engine Down




Minor Intake and Exhaust Porting


Kansai 4.11 Final Drive


Kansai 4.11 Final Drive


Kansai 4.11 Final Drive


Kansai 4.11 Final Drive
ConEvo is offline
Old May 23, 2018, 07:15 AM
  #23
Newbie
Thread Starter

ConEvo's Avatar

Join Date: Sep 2017
Location: EvoNation
Posts: 55
Received 0 Likes on 0 Posts
More parts that are in the waiting list. For now I am waiting for radiator and the turbo



Magnus V5 intake Manifold


T4 Divided Manifold


T4 Divided Manifold


Twin Tial MV-S 38mm Wastegates & S90 74mm Throttle Body


Kiggly HLA Regulator. A high quality piece!


Link Boost Control Solenoid


Walbro 450 Fuel Pump


Vibrant Oil Catch Can


Denso 1 Step Colder Plugs


Zaklee Clear Cam Cover


Prosport Carbon Hood Dampers
ConEvo is offline
Old May 23, 2018, 07:23 AM
  #24
Newbie

Join Date: Sep 2011
Location: Finland
Posts: 89
Received 3 Likes on 3 Posts
Cool, it's going to be a nice build. What brand is that T4 twin scroll manifold? What turbo are you going to run?
MR ArcticC is offline
Old May 23, 2018, 08:04 AM
  #25
Newbie
Thread Starter

ConEvo's Avatar

Join Date: Sep 2017
Location: EvoNation
Posts: 55
Received 0 Likes on 0 Posts
Originally Posted by MR ArcticC View Post
Cool, it's going to be a nice build. What brand is that T4 twin scroll manifold? What turbo are you going to run?
The manifold is a custom made from Exelixis Motorsports. The turbo that I am waiting is a Precision 6466
ConEvo is offline
Old May 23, 2018, 02:13 PM
  #26
Evolved Member
iTrader: (4)

ctfpevoVIII's Avatar

Join Date: Feb 2012
Location: connecticut
Posts: 856
Received 24 Likes on 24 Posts
Good luck with your build , you have a bunch of nice stuff going into it!
ctfpevoVIII is offline
Old May 23, 2018, 02:28 PM
  #27
Evolved Member
iTrader: (25)

ExViTermini's Avatar

Join Date: Jan 2005
Location: Virginia
Posts: 1,758
Likes: 0
Received 12 Likes on 11 Posts
Suprised that you are going that all out and big turbo, but h beams
ExViTermini is offline
Old May 23, 2018, 03:24 PM
  #28
Evolved Member
iTrader: (1)

2006EvoIXer's Avatar

Join Date: Jul 2012
Location: California
Posts: 2,855
Received 139 Likes on 132 Posts
Originally Posted by ExViTermini View Post
Suprised that you are going that all out and big turbo, but h beams
I think the Carrillo Pro H is a good choice for the 100mm crank. It will reduce rotational energy to reduce chance of crank fracturing at #4 oil port. I'm not a fan of LR because I like the pistpn rings spread out as far as possible to reduce cylinder wall wear.
2006EvoIXer is offline
Old May 23, 2018, 03:48 PM
  #29
Evolved Member
iTrader: (25)

ExViTermini's Avatar

Join Date: Jan 2005
Location: Virginia
Posts: 1,758
Likes: 0
Received 12 Likes on 11 Posts
The r&r i beams weigh like an h beam. Great choice for this application.
ExViTermini is offline
The following users liked this post:
2006EvoIXer (May 23, 2018)
Old May 24, 2018, 01:52 AM
  #30
Evolved Member
iTrader: (3)

cursedsm's Avatar

Join Date: Sep 2009
Location: Pinckney, Michigan
Posts: 2,365
Received 6 Likes on 6 Posts
You got a lot of nice stuff on this build congrats. But I think you made one mistake. I can understand wall thickness of the block, but how do you know the cylinders are true? Hate to see you spend all that cash and have oblong cylinders in the block, specially when it came to a used 64 block. I was kind of surprised you went H beam rods as others did, but I know Carrillo makes nice stuff and those should be fine. Only other thing I can say is wasted money on those race balance shafts personally, and I think you should have went with a larger runner intake mani to help the air get into the engine given the larger displacement. Other then that thing should be a monster nice job. Looking forward to some #s.
cursedsm is offline
