Official torque specs thread

Old Sep 11, 2016, 11:07 AM
  #136
Evolving Member

Vigman's Avatar

Join Date: Mar 2007
Location: Mexico
Posts: 434
Thanked 1 Time in 1 Post
Originally Posted by MinusPrevious View Post
Its likely, Cosworth would refer all torque specs per the manufacturer

This was taken from the manual. 18ft lbs. Not sure what you meant by CR? Please double check this info


Thank you Minus Previous!
CR: Connecting Rod.
I wrote Cosworth and they do not supply any value, unbelievable!.. I guess manufacturer settings is a good start.
Cheers!
Vigman is offline
The Following User Says Thank You to Vigman For This Useful Post:
MinusPrevious (Sep 11, 2016)
Old Sep 11, 2016, 04:22 PM
  #137
EvoM Super Moderator
iTrader: (3)

MinusPrevious's Avatar

Join Date: May 2008
Location: So.Cal
Posts: 5,373
Thanked 693 Times in 662 Posts
Originally Posted by Vigman View Post
Thank you Minus Previous!
CR: Connecting Rod.
I wrote Cosworth and they do not supply any value, unbelievable!.. I guess manufacturer settings is a good start.
Cheers!
Yes, Connecting rod. Here it is if needed. Taken from EvO 9 manual


MinusPrevious is offline
Old Sep 11, 2016, 04:38 PM
  #138
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 11,578
Thanked 623 Times in 589 Posts
Do not use the OEM connecting rod bolt torque spec on your cosworth rods. It will not work.

Also, if you bought main studs, do not use the torque specs for the OEM bolts.

The OEM bolts are torque to yield bolts. Hence the torque spec is XXft-lbs then an additional 90*. The manufacturer has to do a good amount of testing (with the bolt and the assembly) to come with a torque spec like that.

I find it quite deplorable that cosworth doesn't have torque specs for their parts. Do the heads of the rod bolts have markings on them?
letsgetthisdone is offline
Old Feb 17, 2017, 01:07 AM
  #139
Newbie

Join Date: Feb 2017
Location: tacoma wa
Posts: 9
Thanked 0 Times in 0 Posts
needed this info thanks
matthunter1448 is offline
Old Jun 12, 2017, 08:02 AM
  #140
Evolved Member
iTrader: (5)

bakuro117's Avatar

Join Date: May 2011
Location: Cynthiana, KY
Posts: 1,811
Thanked 29 Times in 29 Posts

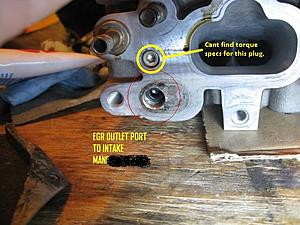

Does anyone know if there is a torque spec for the oil passage plug on the back of the cylinder head just above the EGR port? Please see pic below for reference. I've skimmed the service manual, and tried a few searches here, but haven't had any luck finding the specifics on this little guy.

Thanks!
Attached Thumbnails Official torque specs thread-egrplug.jpg
bakuro117 is offline
Old Jun 12, 2017, 08:20 AM
  #141
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 11,578
Thanked 623 Times in 589 Posts
It's pipe thread. Put thread sealant on it, and snug it up. It's not going to go anywhere, the threads are tapered, it basically wedges itself in place.
letsgetthisdone is offline
Old Jun 13, 2017, 07:50 AM
  #142
Evolved Member
iTrader: (5)

bakuro117's Avatar

Join Date: May 2011
Location: Cynthiana, KY
Posts: 1,811
Thanked 29 Times in 29 Posts
Got it taken care of last night. Thanks for the advice. Just wanted to double-check that there wasn't a factory spec anywhere.
bakuro117 is offline
Old Jun 25, 2017, 01:47 AM
  #143
Newbie

Join Date: Nov 2015
Location: lincoln
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
whats the torque settings for the flywheel on an evo 4? and the pressure plate to flywheel? thanks
chizz is offline
Old Jul 18, 2017, 10:38 PM
  #144
Newbie

Join Date: Jul 2017
Location: Cali
Posts: 34
Thanked 6 Times in 3 Posts
Huge thanks,
this helps tremendously. +Rep
EV09AWD is offline
Old Sep 26, 2017, 07:45 PM
  #145
Newbie

Join Date: Apr 2010
Location: RI
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Very helpful
jlcann1 is offline
Old Jul 13, 2018, 07:21 PM
  #146
Newbie

Join Date: Apr 2010
Location: New Jersey
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
Anyone know the torque specs for turbo studs that connect to the exhaust manifold
EvoStevo777 is offline
Old Jan 7, 2019, 03:19 PM
  #147
Evolved Member
iTrader: (27)

boostedwrx's Avatar

Join Date: Dec 2002
Location: Seattle, WA
Posts: 5,019
Thanked 1 Time in 1 Post
Difference in torque specs in the repair manual. I circled the fasteners in question.

The m8 manifold bolts are 22+-2 ft/lb on one, 24+-4 on other. M10 nuts 36+-4 on one, 41+-6 other. Not huge diff there.

Manifold to turbo bolts and nuts are 38+-3 one, 47+-3 the other, however Nm is the same at 64+-5 Nm. 64 Nm is 47 ft/lb.

I’m thinking the greater of the figures is the correct one as the fsm manifold torque sequence references the greater numbers also. Although 47ft/lb on the turbo bolts seems a little high, I always did around 40 I thought..



boostedwrx is offline
Old Jan 7, 2019, 06:37 PM
  #148
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 11,578
Thanked 623 Times in 589 Posts
You can't really "torque" the smaller manifold to head bolts with most aftermarket manifolds, so I just guess at 25ftlbs on those. The big ones on the manifold get 40ftlb. And on the stock frame stuff where I can use a torque wrong on the turbo to manifold bolts/studs, I do 48ftlb. Or in the case of basically any aftermarket mani, even stock frame stuff, they just get made tight because theres no torqueing them.
letsgetthisdone is offline
Old Jan 8, 2019, 10:43 PM
  #149
Evolved Member
iTrader: (27)

boostedwrx's Avatar

Join Date: Dec 2002
Location: Seattle, WA
Posts: 5,019
Thanked 1 Time in 1 Post
Originally Posted by letsgetthisdone View Post
You can't really "torque" the smaller manifold to head bolts with most aftermarket manifolds, so I just guess at 25ftlbs on those. The big ones on the manifold get 40ftlb. And on the stock frame stuff where I can use a torque wrong on the turbo to manifold bolts/studs, I do 48ftlb. Or in the case of basically any aftermarket mani, even stock frame stuff, they just get made tight because theres no torqueing them.
Just weird the fsm has different specs, but they’re all close enough I guess like ya say. On the FP cast there’s about enough room to get a deep flank crowfoot on the top row. The bottom is fine. And I got a new made in Merica CDI torque wrench to use
boostedwrx is offline
