I found the p/n in case anyone else needs it.

Cylinder Block Bushings (alignment/locator dowels)
MS471111



Is there a part number for the speed sensor o-ring? Or a size? Any how to's on changing it?



here are the part numbers for the ball joint boot covers and snap rings for the rear suspension CT9A

top boot(need 2)
MR455070

bottom boot(need 2)
4110A055

snap rings(need 4 if you don't want to reuse them)
MR403013[/QUOTE]

should be able to get them from Mitsubishiparts.net Ask Russell.



Russell confirmed they are orderable and usually takes 3-5 days to get them in

one p/n for snap rings for upper and lower arms is correct....

not expensive Just ordered mine today



Any one know the # for the brass ring that fastens the cig lighter on the bottom



whoops. wrong thread....



Searched, didn't find. So...

'05 VIII

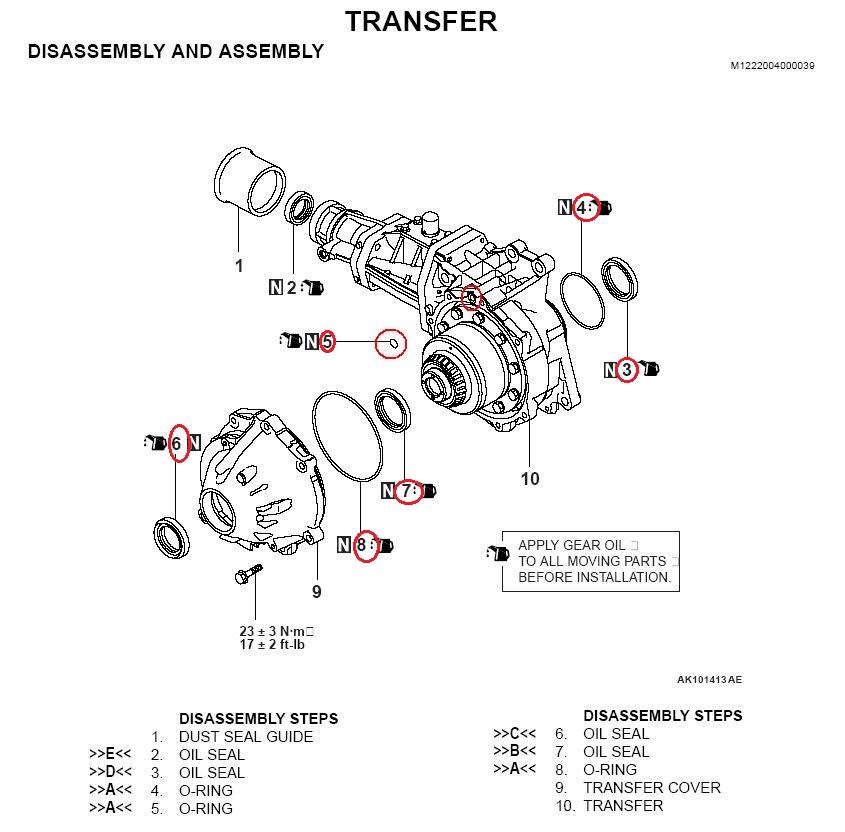

Installing a helical front diff and I want to replace ALL the rubber seals, O rings and axle seals.

I'd love some guidance with a list of part numbers.

Thanks,
Eric



I need part number for the red circled bits.
Well not the output seals but definitely the o rings

Please



Hi, I've looked all over and the local Mitsubishi dealers are run by a bunch of circus animals... I am in need of your help! I drive an 11 X GSR and I'm looking a drivers side skirt item. They are the 3 black panels that clip onto the car from under the door, the side skirt then goes over these pieces and are screwed from underneath to secure it all in place. Can anyone provide me with a part number so I can call Mitsubishi directly and order this? Any help would be much appreciated Thanks in advance

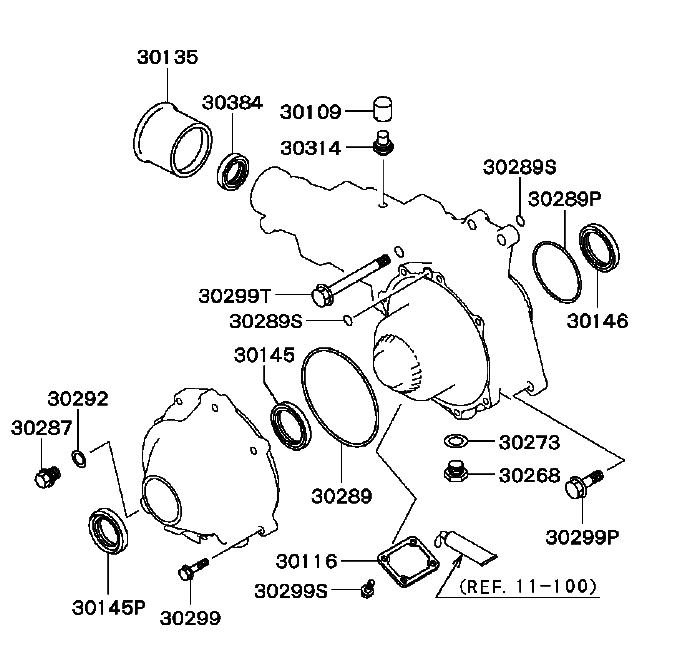

30145 - MR581855
30289P - MD727944
30146 - MR980100
30289 - MD752659
30145P - MD755526



You, sir, are a wonderful human being.
Thanks



the clips that are circled cant find part number!! please help me out.

armrest console clips



Haha Golgo, your liking ASA huh??? LOL. I think a copy should come with every Evo.. but then this thread would be useless



nvm installed mitsu asa and found it. MR402859



Hi, looking for circlip (c-clip, cir clip) on the output shaft of the transmission 05 evo 8. Circlip holds the axle in place. Specifically for drivers front side. the drawing is from another car not an evo. photo is an evo8
