All Part Number Request Go Here


Old Oct 15, 2012, 05:28 PM
  #3811
kaj
Evolved Member
iTrader: (58)

kaj's Avatar

Join Date: Mar 2006
Location: Fresno, CA
Posts: 10,482
Received 305 Likes on 290 Posts

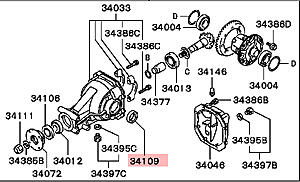

not sure if anyone has asked (search came back empty) but need part numbers for the oil seals on the sides of the rear diff. part number 5 here:

kaj is offline
Old Oct 15, 2012, 07:43 PM
  #3812
Newbie
iTrader: (2)

Roberto774's Avatar

Join Date: Mar 2012
Location: Venezuela
Posts: 55
Likes: 0
Received 1 Like on 1 Post
Anyone have the part number of brembo calipers from evo 9? front and rear! Thx!
Roberto774 is offline
Old Oct 15, 2012, 07:54 PM
  #3813
Evolved Member
iTrader: (10)

Raptord's Avatar

Join Date: Mar 2009
Location: Gatineau, Quebec, Canada
Posts: 3,522
Received 12 Likes on 12 Posts
Originally Posted by kaj View Post
not sure if anyone has asked (search came back empty) but need part numbers for the oil seals on the sides of the rear diff. part number 5 here:
part number MD707184

(highlighted in red)


Originally Posted by Roberto774 View Post
Anyone have the part number of brembo calipers from evo 9? front and rear! Thx!

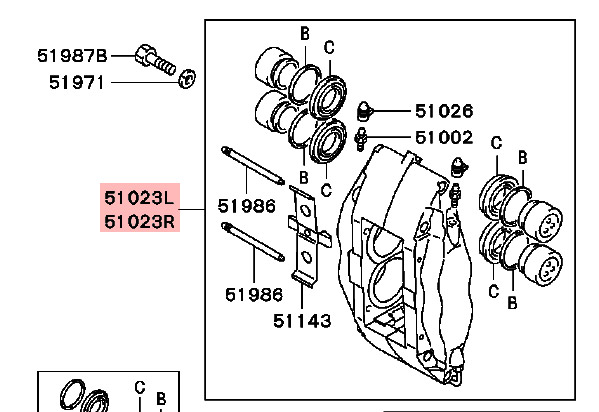

Part numbers for Evo IX brake calipers:

Front right: 4605A436
Front Left: 4605A435
Rear Right: 4605A437
Rear Left: 4605A438

(highlighted in red)
Raptord is offline
Old Oct 19, 2012, 08:42 PM
  #3814
Newbie

Join Date: Nov 2011
Location: New Zealand
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Hey, I'm after the P/N for Evo 6 engine Trans mount can't seem to source a new one, also Is there another mount thats not from CP9A that is also a correct fit?
TweAk_VI is offline
Old Oct 20, 2012, 01:08 AM
  #3815
kaj
Evolved Member
iTrader: (58)

kaj's Avatar

Join Date: Mar 2006
Location: Fresno, CA
Posts: 10,482
Received 305 Likes on 290 Posts
you rock. thank you.
kaj is offline
Old Nov 1, 2012, 05:24 PM
  #3816
Evolving Member

evo_skillz's Avatar

Join Date: May 2005
Location: Florida
Posts: 359
Likes: 0
Received 0 Likes on 0 Posts
need evo 9 oem wiper blades, need to replace all of them, both front and back.

Thank you in advance
evo_skillz is offline
Old Nov 1, 2012, 06:26 PM
  #3817
kaj
Evolved Member
iTrader: (58)

kaj's Avatar

Join Date: Mar 2006
Location: Fresno, CA
Posts: 10,482
Received 305 Likes on 290 Posts
Originally Posted by evo_skillz View Post
need evo 9 oem wiper blades, need to replace all of them, both front and back.

Thank you in advance

for real?
kaj is offline
Old Nov 1, 2012, 06:54 PM
  #3818
Evolved Member
iTrader: (10)

Raptord's Avatar

Join Date: Mar 2009
Location: Gatineau, Quebec, Canada
Posts: 3,522
Received 12 Likes on 12 Posts
Originally Posted by evo_skillz View Post
need evo 9 oem wiper blades, need to replace all of them, both front and back.

Thank you in advance
Don't know why you wouldn't just get some from autozone or whatever, but here you go. use the "PNC" number to match on the illustrations for what you want (just the blade itself or the wiper "assembly". The part spec appears to be the length in mm of the blade.

Raptord is offline
Old Nov 1, 2012, 08:32 PM
  #3819
Evolving Member

evo_skillz's Avatar

Join Date: May 2005
Location: Florida
Posts: 359
Likes: 0
Received 0 Likes on 0 Posts
Thank you
evo_skillz is offline
Old Nov 1, 2012, 08:49 PM
  #3820
Evolving Member

evo_skillz's Avatar

Join Date: May 2005
Location: Florida
Posts: 359
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Raptord View Post
Don't know why you wouldn't just get some from autozone or whatever, but here you go. use the "PNC" number to match on the illustrations for what you want (just the blade itself or the wiper "assembly". The part spec appears to be the length in mm of the blade.


excuse my ignorance but I'm not sure what to get, do I need everything highlighted or can I just get the blades for the front and back? sorry I should've been a little more clear.

Thanks again
evo_skillz is offline
Old Nov 1, 2012, 09:15 PM
  #3821
Newbie
iTrader: (1)

Join Date: Oct 2004
Location: Raleigh NC
Posts: 83
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by StreakGSX View Post
MD569372 air intake rivet .....is this the correct part # for the two plastic clip/screw things that hold the air duct/snorkel in the car? I removed that a long time ago and now want to build an intake sheild and incorporate that back into it but can't find those.


Thanks !!
Anyone please
StreakGSX is offline
Old Nov 2, 2012, 05:35 AM
  #3822
Evolved Member
iTrader: (10)

Raptord's Avatar

Join Date: Mar 2009
Location: Gatineau, Quebec, Canada
Posts: 3,522
Received 12 Likes on 12 Posts
Originally Posted by evo_skillz View Post
excuse my ignorance but I'm not sure what to get, do I need everything highlighted or can I just get the blades for the front and back? sorry I should've been a little more clear.

Thanks again
I don't have OEM wipers to check so I don't know if the blade can be replaced seperately from the "bracket" holding it. Since they're 2 seperate parts I would imagine so, in which case you should be able to just get MR300304, MR574655 and MR538219
Raptord is offline
Old Nov 2, 2012, 08:18 AM
  #3823
Evolving Member

evo_skillz's Avatar

Join Date: May 2005
Location: Florida
Posts: 359
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Raptord View Post
I don't have OEM wipers to check so I don't know if the blade can be replaced seperately from the "bracket" holding it. Since they're 2 seperate parts I would imagine so, in which case you should be able to just get MR300304, MR574655 and MR538219
thanks again
evo_skillz is offline
Old Nov 2, 2012, 09:54 AM
  #3824
Evolved Member
iTrader: (11)

ProPilot04's Avatar

Join Date: May 2003
Location: Holding over the VOR
Posts: 1,263
Likes: 0
Received 3 Likes on 3 Posts
Guys... does anyone have part numbers for the REAL JDM Evo IX MR tails?

Lancershop is listing this number... MR8330-A001 + MR8330-A002, but when I spoke with Mitsubishi (in Japan) they said the number had changed to: M8330A120 and 119?

I just want to make sure I'm not losing anything in translation?
ProPilot04 is offline
Old Nov 2, 2012, 10:14 AM
  #3825
Evolved Member
iTrader: (10)

Raptord's Avatar

Join Date: Mar 2009
Location: Gatineau, Quebec, Canada
Posts: 3,522
Received 12 Likes on 12 Posts
Originally Posted by StreakGSX View Post
Anyone please
Not sure exactly what you're looking for, what number is it on this diagram?

Raptord is offline
