I'm in the process of taking trim pieces off my car and putting some felt on them to muffle.

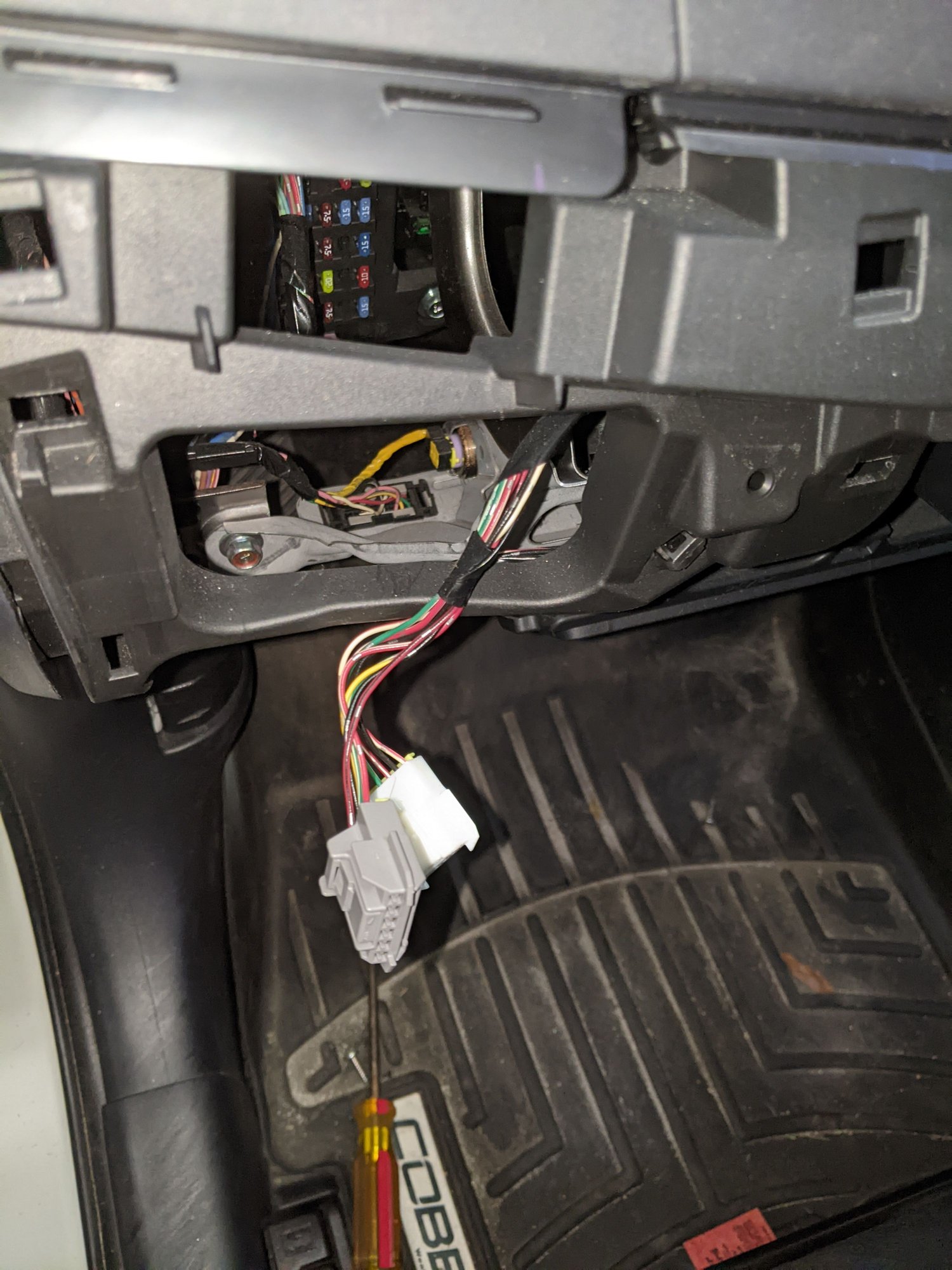

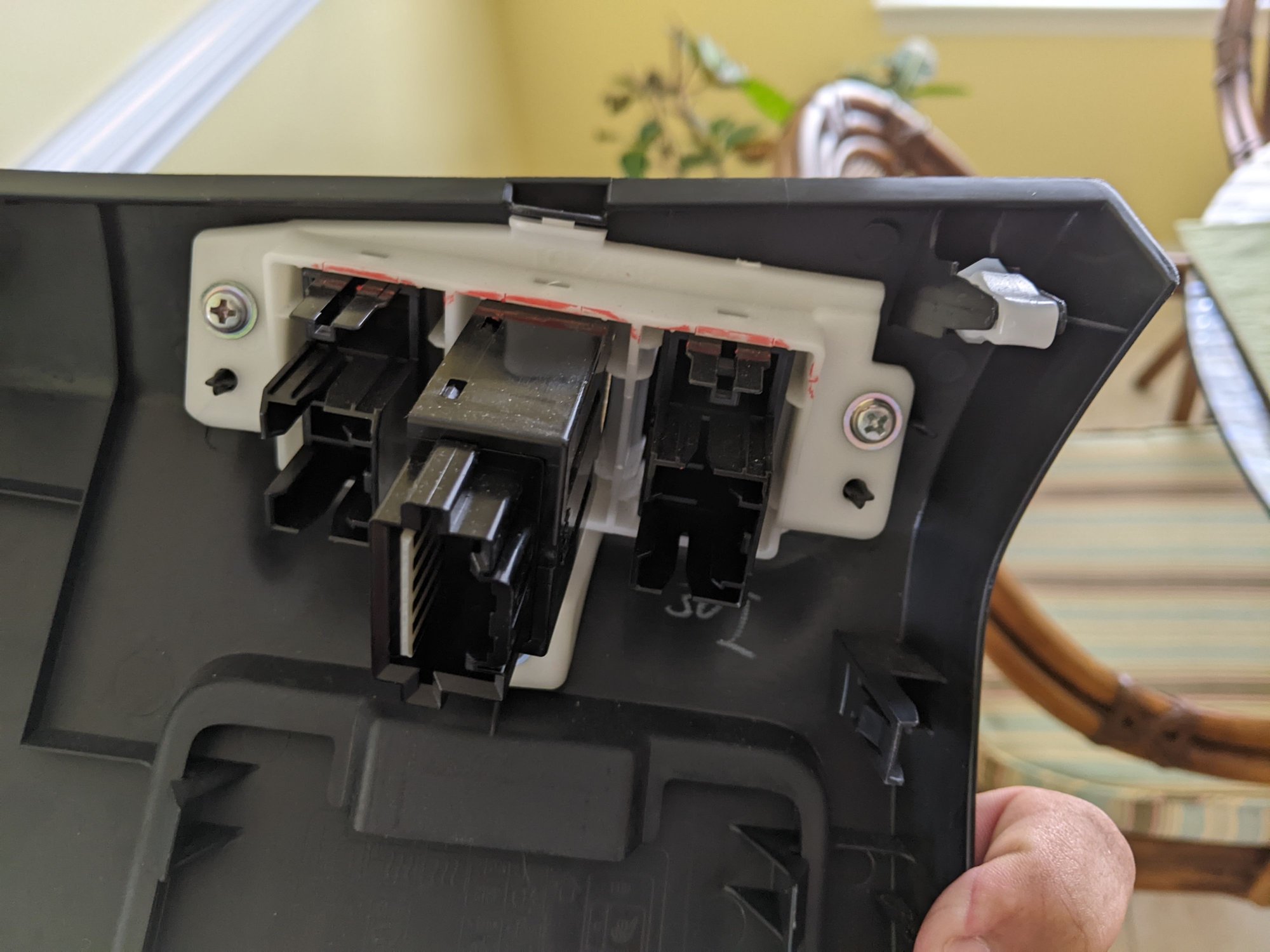

I just took the panel off where the traction control is and within the harness, there are two plugs that are plugged into the button, and into a dummy button. Does anyone know that the harness comes with two plugs or just one? I don't understand why there was one plugged into the dummy switch.

What I want to do is move the switch to the far left. I managed to move the AYC button on the center console to the far left which looks better to me.



One plug was plugged into the far left.

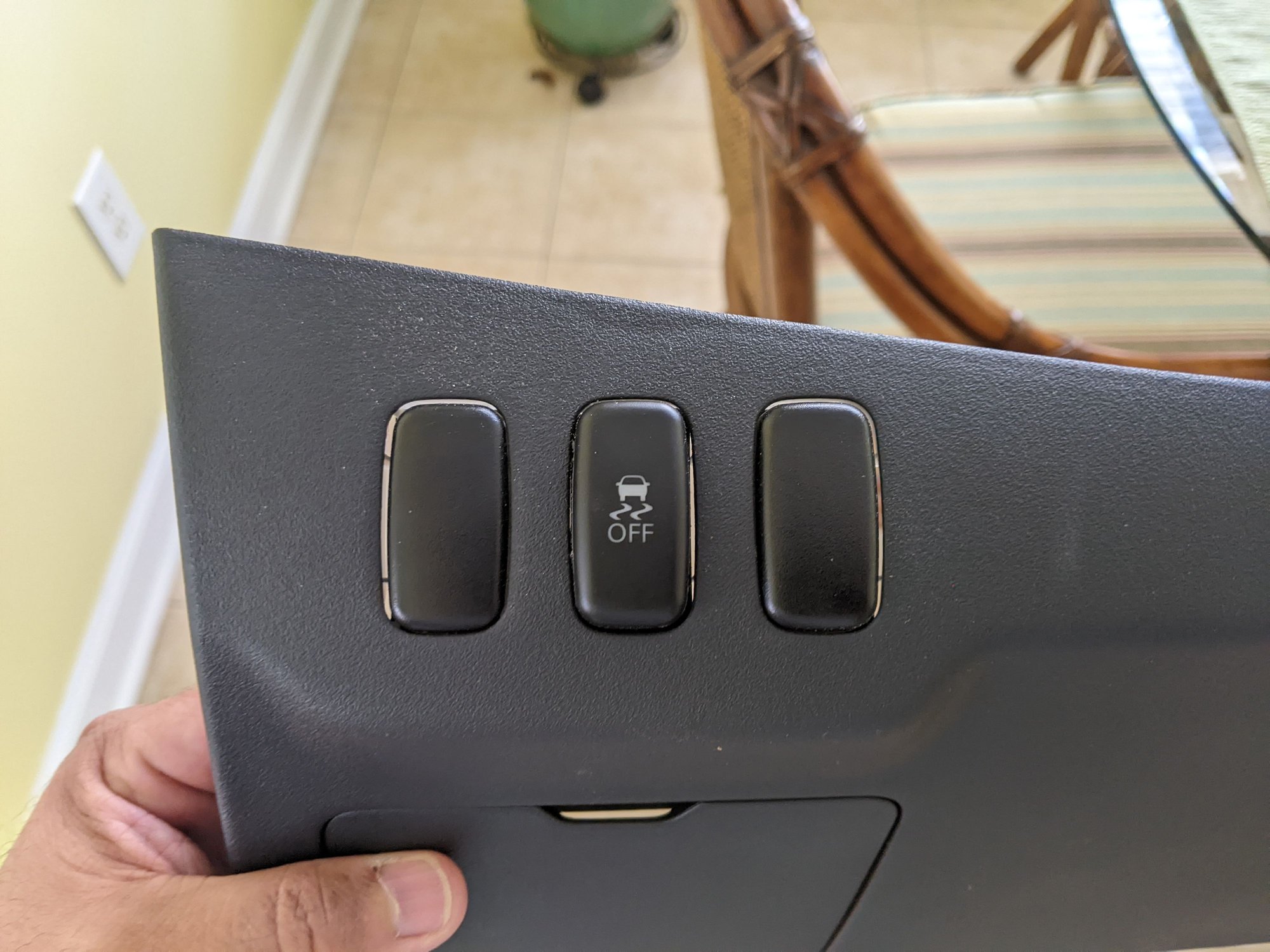

The blank on the left would be for an HID headlight leveling dial. I'm guessing you don't have HID headlights. I imagine your car has the pigtail so that mitsu didn't have to produce multiple wiring harnesses, and it's plugged into the blank keep it from swinging around and contributing to NVH. You can move them around if you like, shouldn't be an issue as long as you aren't putting excess tension on the harness.



Thank You Ever So Much.
I gave up. them switches are a ***** to figure out. So, weird they included that second plug when my car never came with HIDS. I got the car used as well. Honestly how can I tell if I did have HIDS?

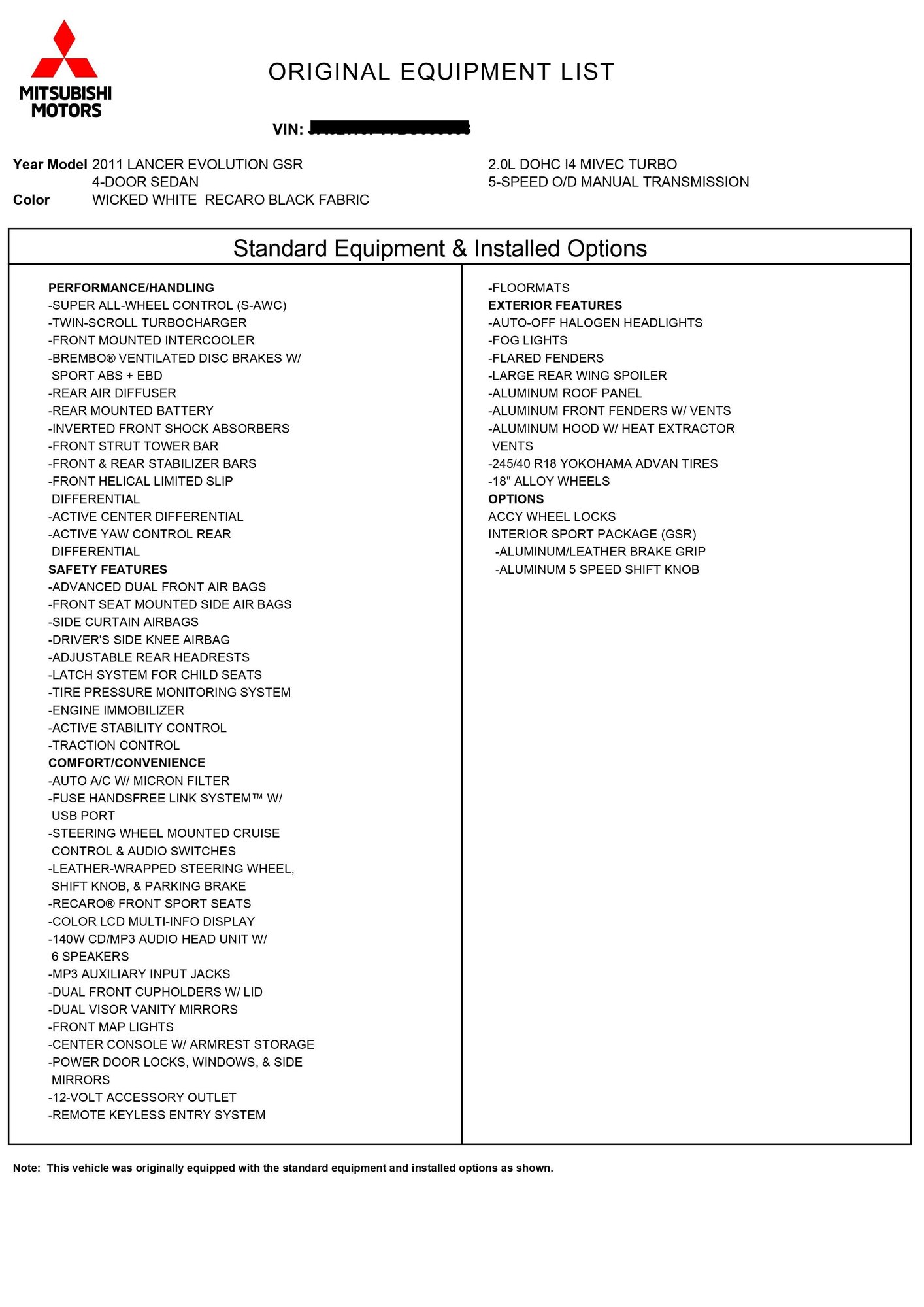

Here's my order sheet.



States halogen lights in that sheet. You do not have hids.

The wire is there for the reason Biggiesacks mentioned. Reusing harnesses across trims



My bad, and thank you. If it's not to hard to get HIDS installed, mine as well do that down the road.



What's the easiest way to take those buttons out? They are suck in there rather TIGHT



you need the OEM HID projector lights, the level switch which is plug & play, as well as the proper ETACS coding to allow them to work without flickering and destroying. Finding somebody to do that is the trickiest part unless you go to the dealer.
