SES on - need help
#1
SES on - need help

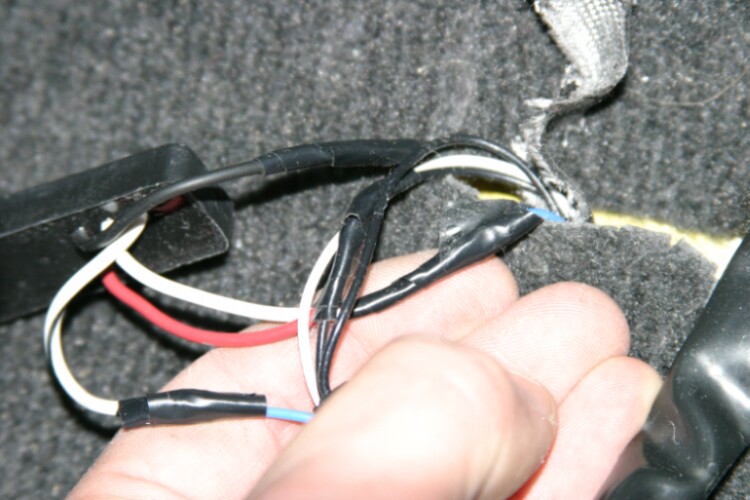

Hi guys, I need small help. I have the following exhaust: RNR downpipe with O2 eliminator, buschur test pipe and catback. Also I bought the O2 simulator from them and trying to connect it so my SES light won't be on all the time. BTW, this is the second O2 simulator that I'm trying to work with and it doesn't work the way I would wish. Meaning, whenever I reset the ECU after +/- 120 miles the code still comes back. I'm getting a "P0139: Heated Oxygen Sensor Circuit Slow Response" code. I spoke with Jarod from Buschur 2 or 3 times and still wasn't able to reach the conclusion. He was nice enough and sent me another O2 simulator and after connecting this one still the same problem. Jarod suggested that the simulator is connected the wrong way so I decided to take few pics and post them here maybe you guys can help me by looking at them. I looked at the schematics that was sent with the simulator and the wireing and the only thing that draws my attention is the black wire that needs to be spliced to connect the red one from the sim. I believe that this is either 5V or 12V supply to the Sim. (can somebody verify this for me). Now by looking at the schematics and the physical connector, the wireing does not follow the same pattern. Schematic says Black, White, Black, Blue, from the picture #3 that I'm posting (connector is the other way arround but if you follow you know what I'm talking about) the wires on the connector do not follow the same pattern, they are Black, Black, White, Blue. Since the order was not followed I fugured that I'm going to connect the Red wire to the first Black from the Blue side which which corresponds to the Yellow/Red wire from the connector comming from the car (I double checked that now). Anyway, all the connections are as following:
White/Black stripe (O2 Sim) - Blue (connector side)
White (O2 Sim) - Blue (O2 Sensor side)
Red (O2 Sim) - Black (splice) second one from the right in picture #2 (Yellow/Red car side connector)
Black (O2 Sim) - Ground
White/Black stripe (O2 Sim) - Blue (connector side)
White (O2 Sim) - Blue (O2 Sensor side)
Red (O2 Sim) - Black (splice) second one from the right in picture #2 (Yellow/Red car side connector)
Black (O2 Sim) - Ground
#7
Originally Posted by davidbuschur
I think a picture showing the wiring on the car side would be pretty helpful.
David Buschur
www.buschurracing.com
David Buschur
www.buschurracing.com
Trending Topics
#8
Evolved Member
iTrader: (53)
Got the wiring expert looking at this. It is still hard to tell but here is what my brother is saying.
IF the red light is lit then the black and red are correct. If not check the ground (black wire) and the red wire.
If the red light is lit and you are still having problems then you have to make sure the white wire w/the black tracer coming out of the simulator is going TO THE CONNECTOR. The other white wire without a tracer goes to the sensor.
David Buschur
www.buschurracing.com
IF the red light is lit then the black and red are correct. If not check the ground (black wire) and the red wire.
If the red light is lit and you are still having problems then you have to make sure the white wire w/the black tracer coming out of the simulator is going TO THE CONNECTOR. The other white wire without a tracer goes to the sensor.
David Buschur
www.buschurracing.com
#10
Originally Posted by davidbuschur
Got the wiring expert looking at this. It is still hard to tell but here is what my brother is saying.
IF the red light is lit then the black and red are correct. If not check the ground (black wire) and the red wire.
If the red light is lit and you are still having problems then you have to make sure the white wire w/the black tracer coming out of the simulator is going TO THE CONNECTOR. The other white wire without a tracer goes to the sensor.
David Buschur
www.buschurracing.com
IF the red light is lit then the black and red are correct. If not check the ground (black wire) and the red wire.
If the red light is lit and you are still having problems then you have to make sure the white wire w/the black tracer coming out of the simulator is going TO THE CONNECTOR. The other white wire without a tracer goes to the sensor.
David Buschur
www.buschurracing.com
#11
Originally Posted by Ev0 1
PM MYEVOVIII for a better and cheaper solution. (no splicing!)
#12
Evolving Member
iTrader: (1)
Join Date: Oct 2003
Location: Land of 10,000 Lakes
Posts: 332
Likes: 0
Received 0 Likes
on
0 Posts
This is yours
"White/Black stripe (O2 Sim) - Blue (connector side)
White (O2 Sim) - Blue (O2 Sensor side)
Red (O2 Sim) - Black (splice) second one from the right in picture #2 (Yellow/Red car side connector)
Black (O2 Sim) - Ground"
Here's how mine's hooked up.
White/black (o2) -> White *(black on white connector side) (this is probably where your problem is)
Solid white (O2) -> Blue
Red (o2) -> 2nd black
Black (O2) -> ground

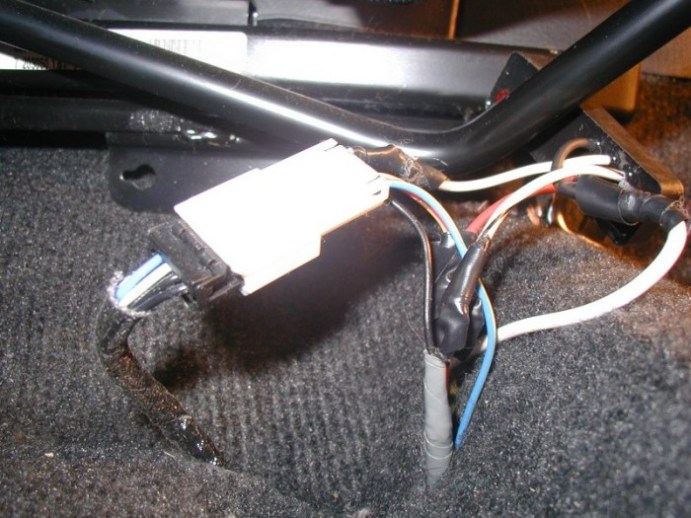

I tapped mine just on the white connector side. Here's a pick, hopefully you can fallow it.
"White/Black stripe (O2 Sim) - Blue (connector side)
White (O2 Sim) - Blue (O2 Sensor side)
Red (O2 Sim) - Black (splice) second one from the right in picture #2 (Yellow/Red car side connector)
Black (O2 Sim) - Ground"
Here's how mine's hooked up.
White/black (o2) -> White *(black on white connector side) (this is probably where your problem is)
Solid white (O2) -> Blue
Red (o2) -> 2nd black
Black (O2) -> ground
I tapped mine just on the white connector side. Here's a pick, hopefully you can fallow it.
Last edited by Evil_1; Mar 1, 2005 at 07:38 PM.
#13
Originally Posted by davidbuschur
Got the wiring expert looking at this. It is still hard to tell but here is what my brother is saying.
IF the red light is lit then the black and red are correct. If not check the ground (black wire) and the red wire.
If the red light is lit and you are still having problems then you have to make sure the white wire w/the black tracer coming out of the simulator is going TO THE CONNECTOR. The other white wire without a tracer goes to the sensor.
David Buschur
www.buschurracing.com
IF the red light is lit then the black and red are correct. If not check the ground (black wire) and the red wire.
If the red light is lit and you are still having problems then you have to make sure the white wire w/the black tracer coming out of the simulator is going TO THE CONNECTOR. The other white wire without a tracer goes to the sensor.
David Buschur
www.buschurracing.com
