Thanks appreciate it timz



Part list

Nuts and bolts
Qty Part # Description
2 MN119783 Bolt turbo to manifold
2 MD132930 Nut turbo to manifold
2 MN119784 Stud turbo to manifold
9 MD132933 Washer Turbo to manifold and O2 housing to hotside
2 MR224441 Stud O2 to Hotside
3 MD062961 Bolt O2 to Hotside
2 MD050073 Nut O2 to hotside

Gaskets and seals
Qty Part # Description
1 MN156738 Turbo drain tube to oil pan build 12/2 to 8/03
1 1226A002 Turbo drain tube to oil pan build 09/03 and up
1 MR323654 Gasket, manifold to head
1 MR404547 Gasket, manifold to turbo
1 MR299686 Gasket, hotside to O2 housing
1 MF650102 Eyebolt, oil line to cylinder head
2 MF660063 crush washer for oil line at cylinder head

Other parts not really required
Qty Part # Description
1 MR258477 Gasket, Oil drain tube to turbo
1 MR281085 Gasket, turbo charger outlet pipe to turbo housing
2 MF660064 crush washer, oil feed pipe to turbo
1 MS650013 Eyebolt, oil line to turbo



Thanks for taking the time to help us out, will go order the parts at dealer tomorrow. By any chance did you do the hotside install too?



Dealer!
MitsubishiParts.net is a lot cheaper!
No but I've done turbo work and have ordered these parts.
The trick is to buy 4 bolts instead of the 2 studs and 2 bolts at the manifold to hotside. Then if you ever need to take the manifold off it is not such a pain in the ***.



I have to go there today to pick up some oil filters so I plan to bring your nice list and compare pricing.

Besides all the mitsu parts that you recommend for the install, did you need to get any other misc parts during the hotside installs you have done in the past?



Sweet just placed my order at mitsubishiparts.net, a little over $100 in parts.



i need part numbers on the evo 8 2003 driver seat button cussion and the two cloth covers(backrest and button.



I need parts #s for the rubber grommet and plastic spacer that sit between the fuel pump and the fuel pump housing...



Maybe I'm just out of the loop, but what is the seat button cussion? Can you describe what your needing?

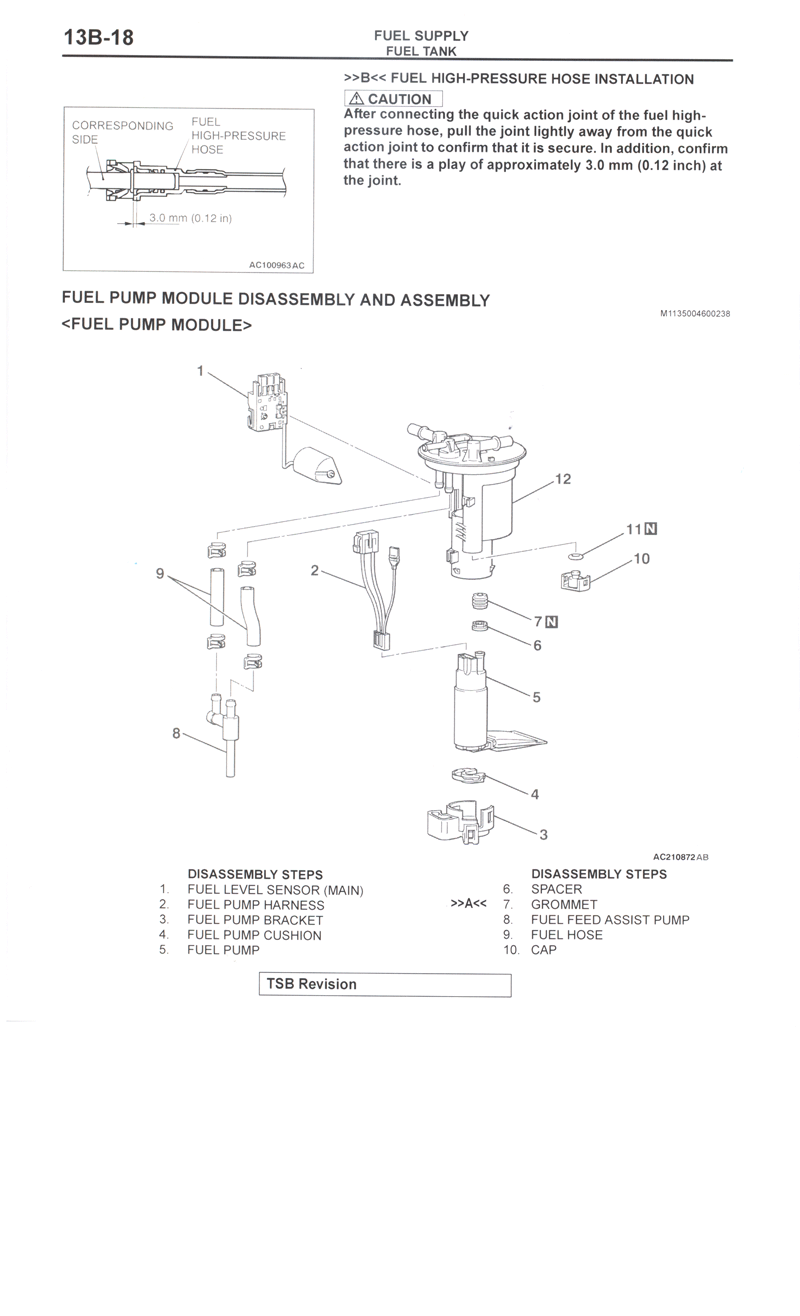

Just to be sure we're on the same page.. From the attatched photo, what are the numbers for the parts you need?



see that photo is wacky... part 5288 is the rubber grommet that seats to the housing... but theres a plastic "spacer" that clips over the fuel pump nozzle and pushes into that rubber grommet...

Does the plastic spacer come as part of the fuel pump itself?



Man, it's been SO long since I did my fuel pump I'm not even sure I remember what you're talking about.

Anyway.. Your grommet PN is: MR431121



I need part # 6. The rubber grommet is part # 7.



I gave you the PN for the PNC (the number you gave me)

In any case, here's the "#6" O-Ring: MR431119



the foam padding on the seat the one on that u sit on and the fabric covers on both pieces, seat and back rest


again foam part of seat under my A$$
