Ok..all the bolts are the same that you are looking for: MU000374

As for brackets, I see (2) towards the front: MR592583 (left) MR592854 (right).

Also so you know, the bolts towards the front of the fender, like the part that would attach to the bumper, those bolts are different, those are: MS100222

And, should for whatever reason you need the bolt going throught whatever that bracket is, that one is: MS100221 .

Also, in case, the washers: MR447022

Ok, sideskirts, got all kinds of numbers for those, the difference, I don't know, its more or less where they go.

Clips: Front, looks in towards fenderwell: MU488006
Towards the rear, apparently "natural color": MB361578
All the rest that run along behing skirt: MB344789

Screws: Ones under front doors: MF455033
Ones under rear doors: MS450174

Hope this helps



Part number for the rear suspension eccentric bolt? This bolt attaches the control arm to the rear subframe, and is what you turn to adjust rear camber.



MB856488



OK, I know somebody has this one. I can't find it anywhere. I want the part number for the hose that runs from the intake manifold to the fuel pressure regulator. It is a black hose with a blue stripe. It also has a metal sleeve on it. I couldnt copy the pic that shows it on this link:

http://evomoto.com/tech_info.php?tPa...554e4ecea006ce

I need to replace this hose and feel safer using OEM parts in this particular location. Thanks!!!



Part # for the shifter retainer or whatever its called, trying to install a short shifter, and dont want to cut the stocker



Guess I'll take it..lol MR561428



Retainer?



Retainer, ring, idk what its called, its looped around the OEM shifter, and has to be transferred over to the short shifter, but i dont want to cut the stock shifter to get it off



Well hate to burst your bubble, but cant get that seperate. You would have to order a shifter in order to get it.



How come I've seen people get it seperately?



You got a fax, I will gladly send you pics from CAPS.

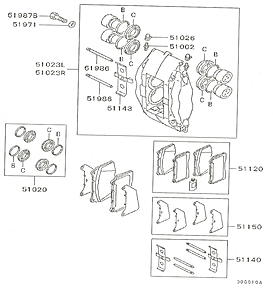

Took me a while to get these posted but here they are in case you LOSE a pin in the Brembo as i did at a track event.... need to replace them...

the FRONT's were like 45.00 for the set of pins and clip.
the REAR were like 8.59 for the set of pins and clip.


you can see from the boxed out parts area what you would need to order.

Good luck...



Thank you!!! I used this as my boost source for my guage and then got to thinking this might be kind of a dangerous place to tap into for a gauge. I would hate to blow up my motor over a stupid boost gauge when there are so many other nice ways to do it. That and the fact I have my PCV into a catch can now so I have an extra boost source now. But thanks a lot!



No prob



thanks for the numbers!

I am also looking for the part number and part actually of the JDM/UK Evo IX GT rear window. It doesnt have a hole for the wiper and doesnt include the rear defroster. Just straight glass. Could u possibly get it?
