Old May 4, 2006 | 03:40 PM
Share
  #1051
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by brembo350z


i need this plug that goes in the head! Please pm me with part #. Thank you so much!
ms661140
Reply
0
Old May 4, 2006 | 03:42 PM
Share
  #1052
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by Racer1

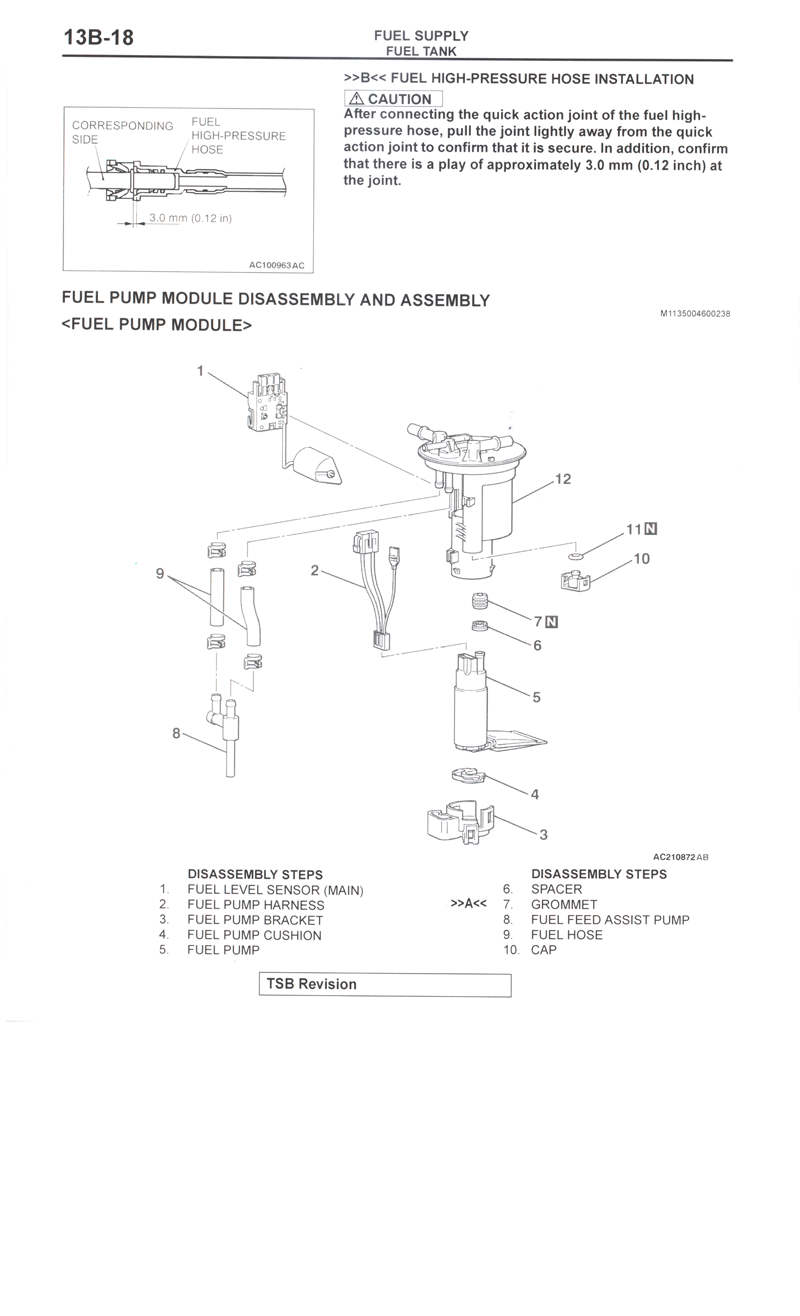

I need the part# for the wiring harness that goes between the fuel pump and fuel pump housing,
https://www.evolutionm.net/forums/at...chmentid=71830
#2 in this attachment

thank you

MR497597
Reply
0
Old May 4, 2006 | 03:43 PM
Share
  #1053
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by justchil
Turbo Oil Return Line? I don't see this anywhere for some reason. The line from turbo to bottom of oil pan.
MR464925
Reply
0
Old May 4, 2006 | 03:44 PM
Share
  #1054
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by Sap12687
Does anyone have the part # For:

Evo IX Spark Plug Cover (single mitsu. symbol)
Evo VIII Cam Gear Cover


thanks!

I can't get IX part numbers...

MD373108 for the VIII cam gear cover
Reply
0
Old May 4, 2006 | 03:58 PM
Share
  #1055
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by Xska555
I need some part numbers some of which are bolts, I hope thats not too much a pain in the ***.

cam angle sensor w/cover and bolts
MD344722 - SUPPORT, CAMSHAFT POSITION SENSOR (basically the sensor body)
MF140025 - BOLT, CYLINDER HEAD FLANGE (two of these hold the cam sensor body to the head)
MD329503 - GASKET, CAM POSITION SENSOR
MD329502 - COVER, CAM POSITION SENSOR
MF140204 - BOLT, CAM SENSOR COVER (three of these needed)
MD327107 - SENSOR, CAMSHAFT POSITION

Originally Posted by Xska555
water inlet pipe w/ bolts
MN143306 - WATER INLET PIPE
MF140021 - BOLTS

Originally Posted by Xska555
thermostat water outlet w/ bolts
MD363251 - THERMOSTAT OUTLET PIPE
MF140207 - BOLTS

Originally Posted by Xska555
thermostat sensor housing w/ bolts
MN143307 - THERMO HOUSING
MF140239 - LONG BOLTS (2)
MF140227 - SHORT BOLTS
MD363254 - GASKET

Originally Posted by Xska555
oil filter housing
MD372813 - HOUSING
MD322522 - GASKET

Originally Posted by Xska555
I also have a picture below that shows 3 part #'s I need. I dont know the proper names to them, there basically very light pieces of metal that cover the timing belt from behind. Two are behind each cam gear towards the out edge of the gear and attach to the head, and there is another one that looks like a mid cover towards the front of the engine. It almost likes it attatches to both the head and the block behind the pulley.

Well I need the part #'s to those covers and the bolts to them.

Thank's
MD322517 - UPPER LEFT
MF140202 - BOLTS (4)

MD334401 - UPPER RIGHT
MF140202 - BOLTS (4)
MD181864 - PLUG

MD373065 - LOWER (no bolts shown)
Reply
0
Old May 4, 2006 | 04:00 PM
Share
  #1056
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by showoff
Cam bearing cap bolts?
MS101353 - BOLTS, CYLINDER HEAD CAM CAPS (QTY 24)
Reply
0
Old May 4, 2006 | 09:26 PM
Share
  #1057
showoff's Avatar
showoff
Newbie

Joined: Sep 2003
Posts: 95
Likes: 0
From: Maui
Originally Posted by SuperHatch
MS101353 - BOLTS, CYLINDER HEAD CAM CAPS (QTY 24)

Thank you. Broken torque wrench= broken cam cap bolts.
Reply
0
Old May 5, 2006 | 08:33 AM
Share
  #1058
SuperHatch's Avatar
SuperHatch
Evolved Member
iTrader: (23)

Joined: Mar 2004
Posts: 2,044
Likes: 0
From: NJ
Originally Posted by showoff
Thank you. Broken torque wrench= broken cam cap bolts.
No prob... good luck!
Reply
0
Old May 6, 2006 | 10:31 AM
Share
  #1059
Xska555's Avatar
Xska555
Newbie
iTrader: (13)

Joined: Jun 2004
Posts: 94
Likes: 1
Thanks alot SuperHatch, you helped me out bigtime!
Reply
0
Old May 9, 2006 | 08:17 AM
Share
  #1060
mdosu's Avatar
mdosu
Evolved Member
iTrader: (6)

Joined: Oct 2004
Posts: 1,666
Likes: 0
From: From Ohio, now in N. Virginia
I need PN verified for 2003 EVO glass, not Lancer glass

okay, I got 3 part numbers from my dealer and prices and they seem to conflict, I absolutely need someone to verify these numbers with me. So please help.

Thanks!

Evo glass MR991637 $439.87
Early model Lancer glass MR533951 $422.95
Late model Lancer glass Mr991638 $816.33
Reply
0
Old May 13, 2006 | 10:07 AM
Share
  #1061
evo_007's Avatar
evo_007
Evolving Member

Joined: Jun 2003
Posts: 117
Likes: 0
I need part numbers for the parts needed to bolt on an Evo 9 turbo on to an Evo 8 hassle free.

- Compressor outlet pipe off turbo compressor housing.
- Water lines
- Oil feed line


Thanks.
Reply
0
Old May 15, 2006 | 02:14 PM
Share
  #1062
evo_007's Avatar
evo_007
Evolving Member

Joined: Jun 2003
Posts: 117
Likes: 0
Whelp, I went to the dealer and got them myself. Here's what I have if anyone may need them.

1515A057 Outlet pipe off compressor housing
1310A248 Water feed tube
1310A171 Water outlet tube
Reply
0
Old May 18, 2006 | 09:52 AM
Share
  #1063
RRRS's Avatar
RRRS
Evolving Member
iTrader: (9)

Joined: Jan 2005
Posts: 147
Likes: 0
From: 1 of 5 boroughs
Originally Posted by timzcat
Part list

1 MF650102 Eyebolt, oil line to cylinder head
2 MF660063 crush washer for oil line at cylinder head

Other parts not really required
2 MF660064 crush washer, oil feed pipe to turbo
1 MS650013 Eyebolt, oil line to turbo
are these crush washers same as "copper washers" mentioned on other threads?? also, are they the same washers for the coolant lines into the turbo? and lastly, do i really need the eye bolts? are they known to leak if not replaced?

i'm in the proccess of collecting these parts for a TME swap, thanks very much.
Reply
0
Old May 18, 2006 | 11:53 AM
Share
  #1064
eling99's Avatar
eling99
Evolved Member
iTrader: (55)

Joined: May 2005
Posts: 923
Likes: 0
From: Las Vegas
part number for center bolts for the front upper strut bar?

Thanks
Reply
0
Old May 18, 2006 | 02:45 PM
Share
  #1065
justchil's Avatar
justchil
Evolved Member
iTrader: (44)

Joined: Oct 2003
Posts: 4,409
Likes: 0
From: Charleston, WV
RRS: yes they are. The eye bolts are fine... unless you have money to waste them you could replace them. Just be very careful both are clean and dirt free.
