CT9A Resurrection and Innovation

Reply



Thread Tools Search this Thread
Old Mar 14, 2017, 06:13 AM   #496
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

Quote:
Originally Posted by Balrok View Post
Once you get around to upping the kW aka torque and get nervous about the tcase there's a ginormous brace that Jon TRE assembled on several tcases for drag cars, it's on his facebook.
After a 3rd unanswered email with TRE, I gave up. I was pretty bummed about their non-existant customer service. I really wanted their 3.73 final drive in my gearbox.
Offline

Reply With Quote
Old Mar 14, 2017, 07:54 AM   #497
Evolved Member
iTrader: (15)

Balrok's Avatar

Join Date: Jun 2006
Location: North GA
Posts: 2,786
Thanked 16 Times in 16 Posts

Drives: Evo IX Race Car

No doubt . You gotta be tactical with him but the best is worth the wait usually.

Found it, may be only for DSM but worth a look:

http://frontlinefabrication.com/prod...er-case-brace/
Offline

Reply With Quote
Old Mar 15, 2017, 06:43 AM   #498
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

Lights
Are wired and working, it was quite a process.


The body shop managed to get mud on the inside of a headlight cover, so I had to dissect and clean.





I bought some HID headlights from a member, but they came stripped. Here is a unit receiving all 5 bulbs, HID ballast, and a dust cover.





After ordering and installing a dash harness and headlight harness (long story), I have a satisfying result.


Last edited by electron bom; Mar 15, 2017 at 06:48 AM.
Offline

Reply With Quote
Old Mar 15, 2017, 08:45 AM   #499
Evolved Member
iTrader: (1)

letsgetthisdone's Avatar

Join Date: Oct 2013
Location: Las Vegas
Posts: 9,090
Thanked 335 Times in 318 Posts

Drives: 2005 Evo 8. 2011 F150 FX4

Quote:
Originally Posted by Balrok
No doubt . You gotta be tactical with him but the best is worth the wait usually.

Found it, may be only for DSM but worth a look:

http://frontlinefabrication.com/prod...er-case-brace/
The tcase brace is only a DSM part. The Evo stuff stays together with the 10mm bolt upgrade, and proper gear setup that takes into account how the case flexes.

Quote:
Originally Posted by electron bom
After a 3rd unanswered email with TRE, I gave up. I was pretty bummed about their non-existant customer service. I really wanted their 3.73 final drive in my gearbox.
Gotta try a little harder with Jon. It's him and his apprentice in the shop, and that's it. And on top of he drivetrain work he does, he also has a CNC business. Pretty busy guys. If you are friends with on Facebook (Jon Ripple), you'll often see him posting work on the weekends. I've had good luck getting simple questions answered in FB messenger. Phone calls are usually best with Jon. But even then, sometime it takes a few tries to get him lol
Online

Reply With Quote
Old Mar 15, 2017, 02:54 PM   #500
Evolved Member
iTrader: (6)

V.8MR's Avatar

Join Date: Nov 2006
Location: Chicago
Posts: 1,395
Thanked 22 Times in 20 Posts

Drives: 05AS MR

Quote:
Originally Posted by letsgetthisdone View Post
Gotta try a little harder with Jon. It's him and his apprentice in the shop, and that's it. And on top of he drivetrain work he does, he also has a CNC business. Pretty busy guys. If you are friends with on Facebook (Jon Ripple), you'll often see him posting work on the weekends. I've had good luck getting simple questions answered in FB messenger. Phone calls are usually best with Jon. But even then, sometime it takes a few tries to get him lol
There is now a 3rd guy! If I remember correctly his name is Erik.
Online

Reply With Quote
Old Mar 17, 2017, 09:12 AM   #501
Evolving Member
iTrader: (9)

Join Date: Dec 2007
Location: NC
Posts: 124
Thanks: 0
Thanked 0 Times in 0 Posts

Drives: Evo 8

Quote:
Originally Posted by electron bom View Post
I'm very interested to learn more about your EPS setup. Not sure I'd put one on my car right now, I actually like the feel w/o PS.
Ill shoot you a PM, have never seen it done on an evo before so Im excited to get it finished.
Offline

Reply With Quote
Old Mar 20, 2017, 04:16 PM   #502
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

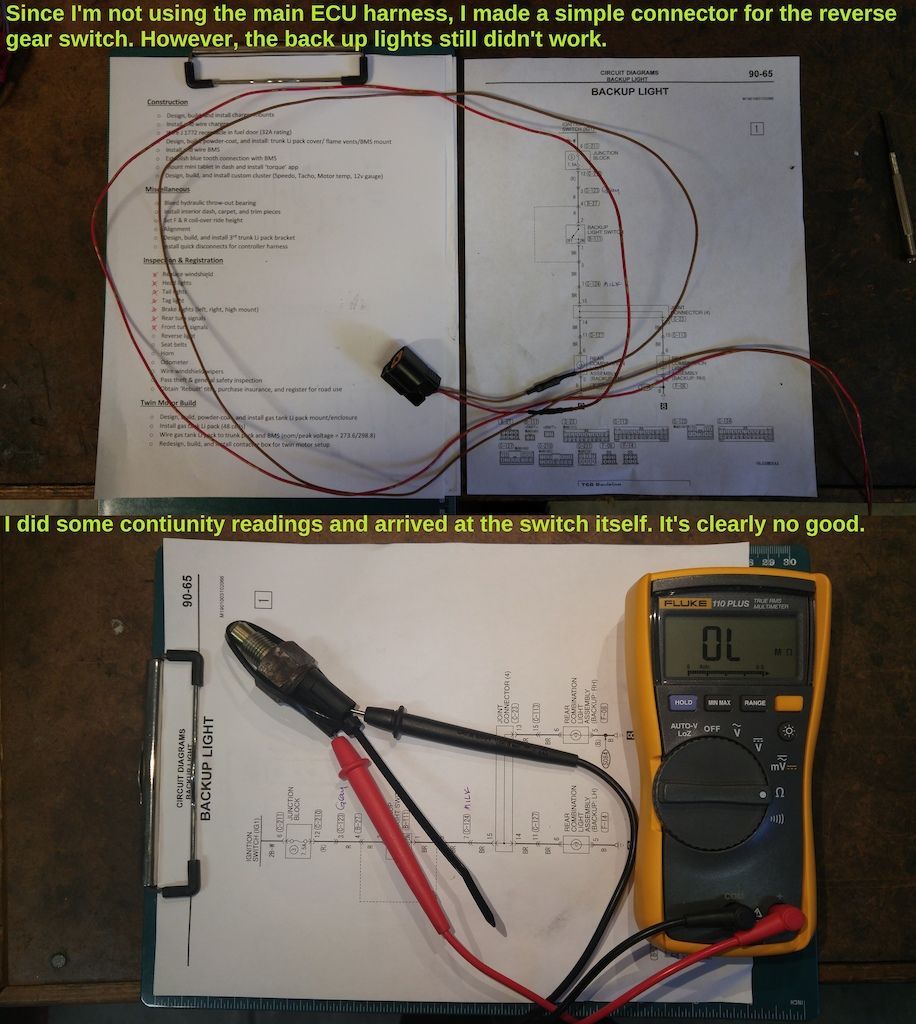

Working through the list of inspectable items
and not fairing so well

New reverse gear sensor on order


Last edited by electron bom; Mar 21, 2017 at 04:50 AM.
Offline

Reply With Quote
Old Mar 20, 2017, 04:24 PM   #503
Evolved Member
iTrader: (4)

4G63_EVO's Avatar

Join Date: Jul 2012
Location: Montrose CA
Posts: 706
Thanked 44 Times in 43 Posts

Drives: 2005 Wicked White SSL EVO 8

Quote:
Originally Posted by electron bom View Post
Working through the list of inspectable items
and not fairing so well

New reverse gear sensor on order

I just replaced mine as well. Thankfully it's clean cut.
Offline

Reply With Quote
Old Mar 20, 2017, 04:27 PM   #504
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

Had to get creative while bleeding clutch lines


Bleeding the QM hydraulic TOB has been interesting. I have been previously unable to eliminate all air bubbles. I installed a speed bleeder thinking that would remediate the problem, but it didn't. All lines and fittings were secure, no issues that I could see. So, I had to go into full blown diagnostic mode. I dropped the bleeder line into a test tube full of fluid. I then observed air bubbles coming from the line termination fitting itself With this new information, I was able to get some pedal pressure. Whether the leak still exists when the bleeder valve is torqued closed remains to be seen.


Offline

Reply With Quote
Old Mar 20, 2017, 04:39 PM   #505
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

Cluster
After much deliberation, I decided it would appropriate to fabricate a custom instrument cluster.


I really wanted to keep the OEM cluster to maintain the 'Evo feel' of the interior. However, fabricating a bracket for a trigger wheel, sensor, etc. and affixing it to my motor wasn't something I was interested in undertaking to obtain a tach signal. I decided to purchase a speedhut analog tach (my controller utilizes an analog square wave for motor speed) and cut a custom cluster. This route probably involves just as much design, but better suits my purposes.

Here is the tach I ordered with a matching speedometer and motor temp gauge.




A rough idea of what my cluster will look like, based on OEM cluster dimensions and actual gauge diameters.


Offline

Reply With Quote
Old Mar 20, 2017, 04:42 PM   #506
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

It's officially the last leg of the build
For the first time, the entire list of tasks can fit on one page.



Last edited by electron bom; Mar 20, 2017 at 04:49 PM.
Offline

Reply With Quote
The Following User Says Thank You to electron bom For This Useful Post:
7EVO7 (Mar 29, 2017)
Old Mar 20, 2017, 05:48 PM   #507
Evolved Member
iTrader: (68)

BluEVOIX's Avatar

Join Date: Mar 2007
Location: IL
Posts: 1,855
Thanks: 0
Thanked 11 Times in 10 Posts

Drives: WW Evo VIII 2003

How will the twin motor setup look like ? Is it a inline/tandem setup or twin side by side ? Perhaps your looking to make two independent gear-less setup like the Tesla? One motor driving the front wheels and another motor independently driving the rear wheels..

Inline/Tandem :


Twin side by side:

Online

Reply With Quote
Old Mar 20, 2017, 08:20 PM   #508
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

I calculated the cost of building my own twin motor kit and it ended up only being about $400 cheaper than this really nice piece EVWEST did for an off-road baja buggy. This is what I'm leaning toward at the moment, should do something like 300hp/500tq with my controller.


Offline

Reply With Quote
The Following User Says Thank You to electron bom For This Useful Post:
7EVO7 (Mar 29, 2017)
Old Mar 21, 2017, 06:26 PM   #509
Evolved Member
iTrader: (68)

BluEVOIX's Avatar

Join Date: Mar 2007
Location: IL
Posts: 1,855
Thanks: 0
Thanked 11 Times in 10 Posts

Drives: WW Evo VIII 2003

Quote:
Originally Posted by electron bom View Post
I calculated the cost of building my own twin motor kit and it ended up only being about $400 cheaper than this really nice piece EVWEST did for an off-road baja buggy. This is what I'm leaning toward at the moment, should do something like 300hp/500tq with my controller.
If you replace your controller , you can potentially make even more HP and TQ ?

So if I understand this correctly, the motors on these EV conversion can essentially can make more than the rated HP and TQ with the right controller , but for a shorter period of time or maybe if you rig something up to not have it over heat?

Also regarding your gauge cluster setup, couldnt you just use the OEM speedometer and customize the rest? If Iím not mistaken the speed sensor is in the transmission. Unless it requires you to use the ECU and doesnt have its own?
Online

Reply With Quote
Old Mar 22, 2017, 04:44 AM   #510
Evolving Member
Thread Starter
iTrader: (17)

Join Date: Apr 2015
Location: Raleigh, NC
Posts: 349
Thanked 44 Times in 29 Posts

Drives: Leaf powered Evo

Quote:
Originally Posted by BluEVOIX View Post
If you replace your controller , you can potentially make even more HP and TQ ?
Yes, my controller is maxed out at about 350kW. There are other DC controllers that will handle much more power than that.
Quote:
Originally Posted by BluEVOIX View Post
So if I understand this correctly, the motors on these EV conversion can essentially can make more than the rated HP and TQ with the right controller , but for a shorter period of time or maybe if you rig something up to not have it over heat?
The manufacturer rates these motors by the amount of electric power they can withstand for 1 hour. They can handle MUCH more than their rated power for shorter intervals.
Quote:
Originally Posted by BluEVOIX View Post
Also regarding your gauge cluster setup, couldnt you just use the OEM speedometer and customize the rest? If Iím not mistaken the speed sensor is in the transmission. Unless it requires you to use the ECU and doesnt have its own?
Yes, but running OEM and aftermarket gauges in the cluster wouldn't look very clean IMO.
Offline

Reply With Quote
