Confirmed: Evo ROM Can Be Flashed to Lancer ECU

Reply Subscribe

Thread Tools

Search this Thread

Apr 29, 2010 | 04:20 PM

#106

ClixT

Evolving Member

iTrader: (2)

Joined: Jul 2008

Posts: 479

Likes: 0

From: Lake Forest, California

i dont think i can try this out... i dont have enough time..

...

Apr 29, 2010 | 06:03 PM

#107

link62

Evolved Member

iTrader: (21)

Joined: Nov 2007

Posts: 857

Likes: 0

From: Bakersfield, CA

Quote:

Originally Posted by ClixT

i dont think i can try this out... i dont have enough time..

...

damn haha sucks man i guess its time for me to stop being lazy and step in and try it out

so let me know what i got to do RS haha

Apr 29, 2010 | 06:11 PM

#108

ClixT

Evolving Member

iTrader: (2)

Joined: Jul 2008

Posts: 479

Likes: 0

From: Lake Forest, California

Quote:

Originally Posted by link62

damn haha sucks man i guess its time for me to stop being lazy and step in and try it out

so let me know what i got to do RS haha

1st step

2nd copy and paste it to your def file:

PHP Code:



    <scaling name="VoltsADC1023" units="Volts" toexpr="x*5/1023" frexpr="x*1023/5" format="%.3f" min="0" max="5" inc="0.005" storagetype="uint16" endian="big"/>
    <scaling name="McSec" units="mcSec" toexpr="x*4" frexpr="x/4" format="%.0f" min="0" max="255" inc="1" storagetype="uint8" endian="big"/>


    <table name="1st to 2nd shift pressure" category="Auto Transmission" address="418d6" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift pressure" category="Auto Transmission" address="418ec" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift pressure" category="Auto Transmission" address="41902" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift pressure" category="Auto Transmission" address="41918" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="1st to 2nd shift time" category="Auto Transmission" address="4192e" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift time" category="Auto Transmission" address="41944" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift time" category="Auto Transmission" address="4195a" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift time" category="Auto Transmission" address="41970" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 2nd to 1st shift?" category="Auto Transmission" address="41986" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 3rd to 2nd shift?" category="Auto Transmission" address="4199c" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 4th to 3rd shift?" category="Auto Transmission" address="419b2" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5th to 4th shift?" category="Auto Transmission" address="419c8" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5" category="Misc" address="Auto Transmission" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

3rd. open your 512kb rom. you might need to reinstall your ecuflash if it doesnt work.

if only im not leaving to my country tom.. =(
EDIT: reformatted my post.

Last edited by ClixT; Apr 29, 2010 at 07:40 PM.

Apr 29, 2010 | 06:14 PM

#109

link62

Evolved Member

iTrader: (21)

Joined: Nov 2007

Posts: 857

Likes: 0

From: Bakersfield, CA

Quote:

Originally Posted by ClixT

1st step

2nd copy and paste it to your def file:

PHP Code:



    <scaling name="VoltsADC1023" units="Volts" toexpr="x*5/1023" frexpr="x*1023/5" format="%.3f" min="0" max="5" inc="0.005" storagetype="uint16" endian="big"/>
    <scaling name="McSec" units="mcSec" toexpr="x*4" frexpr="x/4" format="%.0f" min="0" max="255" inc="1" storagetype="uint8" endian="big"/>


    <table name="1st to 2nd shift pressure" category="Auto Transmission" address="418d6" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift pressure" category="Auto Transmission" address="418ec" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift pressure" category="Auto Transmission" address="41902" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift pressure" category="Auto Transmission" address="41918" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="1st to 2nd shift time" category="Auto Transmission" address="4192e" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift time" category="Auto Transmission" address="41944" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift time" category="Auto Transmission" address="4195a" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift time" category="Auto Transmission" address="41970" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 2nd to 1st shift?" category="Auto Transmission" address="41986" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 3rd to 2nd shift?" category="Auto Transmission" address="4199c" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 4th to 3rd shift?" category="Auto Transmission" address="419b2" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5th to 4th shift?" category="Auto Transmission" address="419c8" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5" category="Misc" address="Auto Transmission" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

if only im leaving to my country tom.. =(

thanks clixt and damn that sucks dont go haha so how long u gonna be gone?

Apr 29, 2010 | 06:15 PM

#110

ClixT

Evolving Member

iTrader: (2)

Joined: Jul 2008

Posts: 479

Likes: 0

From: Lake Forest, California

Quote:

Originally Posted by link62

thanks clixt and damn that sucks dont go haha so how long u gonna be gone?

for a month....

Apr 29, 2010 | 06:16 PM

#111

4g94T

Evolved Member

iTrader: (18)

Joined: May 2004

Posts: 2,069

Likes: 0

From: California

Quote:

Originally Posted by ClixT

for a month....

oh the suspense!

Apr 29, 2010 | 06:19 PM

#112

ClixT

Evolving Member

iTrader: (2)

Joined: Jul 2008

Posts: 479

Likes: 0

From: Lake Forest, California

well imma bring my laptop with me but, i cant reflash the rom to my car though...

Apr 29, 2010 | 08:17 PM

#113

ClixT

Evolving Member

iTrader: (2)

Joined: Jul 2008

Posts: 479

Likes: 0

From: Lake Forest, California

hey link, heres your def:
make sure you change it back to .xml

Attached Files

81870015.doc (16.7 KB, 0 views)

Apr 29, 2010 | 08:50 PM

#114

link62

Evolved Member

iTrader: (21)

Joined: Nov 2007

Posts: 857

Likes: 0

From: Bakersfield, CA

so im not able to read my rom using the auto read temptle, and when i put the auto shift points in my xml file all i get is an error code and i cant edit the tranny shift as they are just grey boxes and my whole rom is messed up

Last edited by link62; Apr 29, 2010 at 09:04 PM.

Apr 29, 2010 | 08:54 PM

#115

link62

Evolved Member

iTrader: (21)

Joined: Nov 2007

Posts: 857

Likes: 0

From: Bakersfield, CA

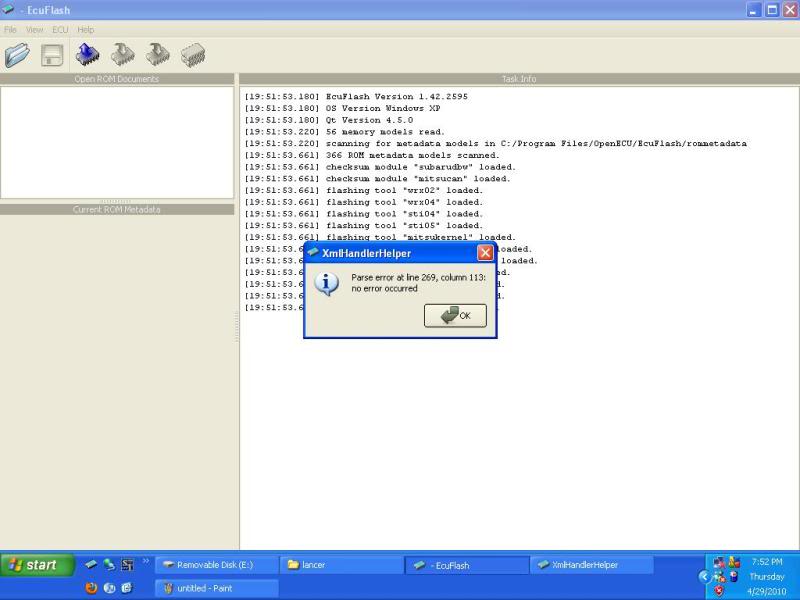

this is the error i get when i tired to put this in my current def file
Name: xml.jpg
Views: 0
Size: 45.6 KB

and my def file is 81870015 and internal id is 81870017

Apr 29, 2010 | 09:15 PM

#116

4g94T

Evolved Member

iTrader: (18)

Joined: May 2004

Posts: 2,069

Likes: 0

From: California

Did you convert your ROM to 512kb?

Apr 29, 2010 | 09:31 PM

#117

link62

Evolved Member

iTrader: (21)

Joined: Nov 2007

Posts: 857

Likes: 0

From: Bakersfield, CA

Quote:

Originally Posted by 4g94T

Did you convert your ROM to 512kb?

Tried, that what he tried to have us read our rom with his auto template but once i read it it just tells me there no def or the rom and that i either have to abort, open and able to save it (which shows nothing on the right) or try to define it

Apr 29, 2010 | 09:50 PM

#118

RoadSpike

Evolved Member

iTrader: (5)

Joined: Oct 2006

Posts: 3,805

Likes: 2

From: Sacramento, CA

Ok guys apparently we missed the couple things I mentioned.

I screwed up the xml by putting "Auto Transmission" into the adress box instead of the category so thats my fault.

Fixed XML:

PHP Code:


			<scaling name="VoltsADC1023" units="Volts" toexpr="x*5/1023" frexpr="x*1023/5" format="%.3f" min="0" max="5" inc="0.005" storagetype="uint16" endian="big"/>
    <scaling name="McSec" units="mcSec" toexpr="x*4" frexpr="x/4" format="%.0f" min="0" max="255" inc="1" storagetype="uint8" endian="big"/>


    <table name="1st to 2nd shift pressure" category="Auto Transmission" address="418d6" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift pressure" category="Auto Transmission" address="418ec" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift pressure" category="Auto Transmission" address="41902" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift pressure" category="Auto Transmission" address="41918" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="1st to 2nd shift time" category="Auto Transmission" address="4192e" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift time" category="Auto Transmission" address="41944" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift time" category="Auto Transmission" address="4195a" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift time" category="Auto Transmission" address="41970" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 2nd to 1st shift?" category="Auto Transmission" address="41986" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 3rd to 2nd shift?" category="Auto Transmission" address="4199c" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 4th to 3rd shift?" category="Auto Transmission" address="419b2" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5th to 4th shift?" category="Auto Transmission" address="419c8" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5" category="Auto Transmission" address="419df" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

I learned you need to change your definition file to either include this memory model or replace it with SH7055 instead of SH7052.

Basically look for this line:
<memmodel>SH7052</memmodel>

Either replace it with OR add this line below it:
<memmodel>SH7055</memmodel>

You have to include the SH7055 to read the 512kb rom otherwise ecuflash thinks you need another definition.

Apr 29, 2010 | 10:12 PM

#119

link62

Evolved Member

iTrader: (21)

Joined: Nov 2007

Posts: 857

Likes: 0

From: Bakersfield, CA

Quote:

Originally Posted by RoadSpike

Ok guys apparently we missed the couple things I mentioned.

I screwed up the xml by putting "Auto Transmission" into the adress box instead of the category so thats my fault.

Fixed XML:

PHP Code:


			<scaling name="VoltsADC1023" units="Volts" toexpr="x*5/1023" frexpr="x*1023/5" format="%.3f" min="0" max="5" inc="0.005" storagetype="uint16" endian="big"/>
    <scaling name="McSec" units="mcSec" toexpr="x*4" frexpr="x/4" format="%.0f" min="0" max="255" inc="1" storagetype="uint8" endian="big"/>


    <table name="1st to 2nd shift pressure" category="Auto Transmission" address="418d6" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift pressure" category="Auto Transmission" address="418ec" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift pressure" category="Auto Transmission" address="41902" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift pressure" category="Auto Transmission" address="41918" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="1st to 2nd shift time" category="Auto Transmission" address="4192e" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="2nd to 3rd shift time" category="Auto Transmission" address="41944" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="3rd to 4th shift time" category="Auto Transmission" address="4195a" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="4th to 5th shift time" category="Auto Transmission" address="41970" type="2D" level="1" scaling="McSec">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 2nd to 1st shift?" category="Auto Transmission" address="41986" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 3rd to 2nd shift?" category="Auto Transmission" address="4199c" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 4th to 3rd shift?" category="Auto Transmission" address="419b2" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5th to 4th shift?" category="Auto Transmission" address="419c8" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

    <table name="duty vs load 5" category="Auto Transmission" address="419df" type="2D" level="1" scaling="uint8">
        <table name="load" address="41e6e" type="X Axis" elements="16" scaling="VoltsADC1023"/>
    </table>

ok so i change the memmodel and added the new xml and when to pull the rom off my car and still no go say i need a def files still, and when i read an old rom with the change def file it makes my rpm and loads our of wack and now the auto option arent greyed but they all show 0 or everything

Apr 30, 2010 | 12:23 AM

#120

RoadSpike

Evolved Member

iTrader: (5)

Joined: Oct 2006

Posts: 3,805

Likes: 2

From: Sacramento, CA

Quote:

Originally Posted by link62

See if you can't inherit your old xml.

If you can save it and email it to me with your old xml i can easily find the transmission map and send you an xml back. Post your rom id too maybe i have it already.

Reply Share

First
Prev
8 / 47
Next
Last
